SPECIFICATIONS



Audio Encoding: Multichannel



Audio Sensitivity: 90dB

Certification: CE,FCC,RoHS

Color Name: black

Frequency Range (Hz): 20Hz~20KHz

Impedance: 4 Ω

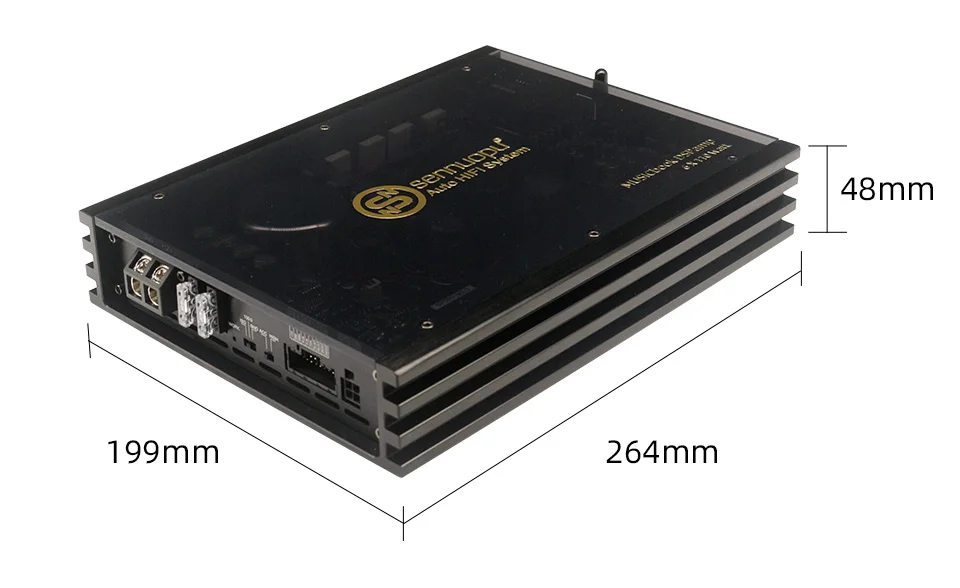

Item Size: 265mm*200mm*48mm

Item Type: AMPLIFIERS

Item Weight: 4.5

Material: Aluminum

Model Name: X680 Plus

Out Power: 6*110 Watts

Signal To Noise Ratio: 98dB

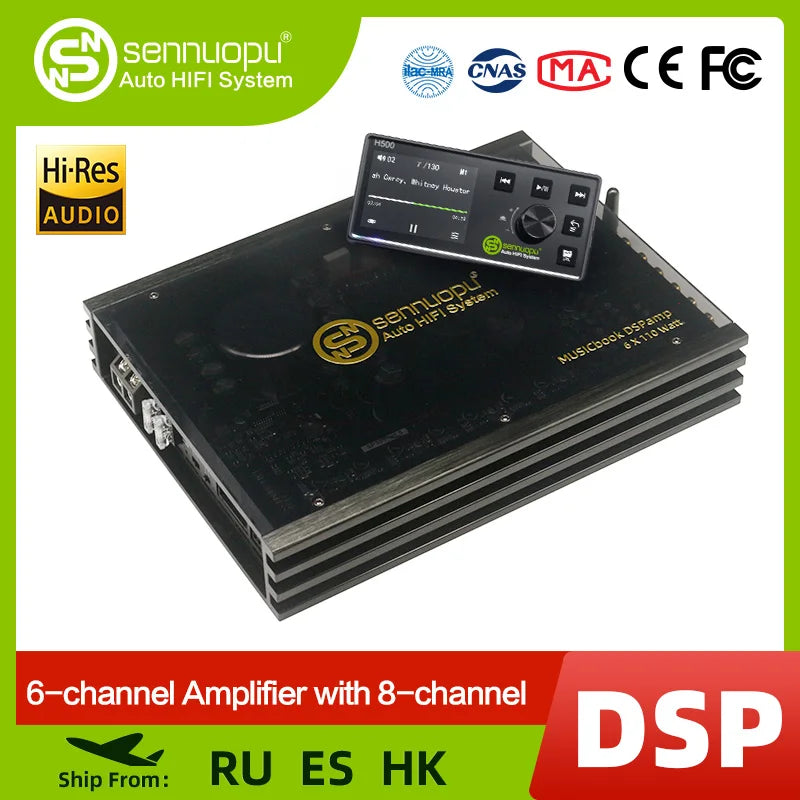

★★★Sennuopu 8 Ch dsp audio processor power 6 Channel subwoofer amplifier car★★★

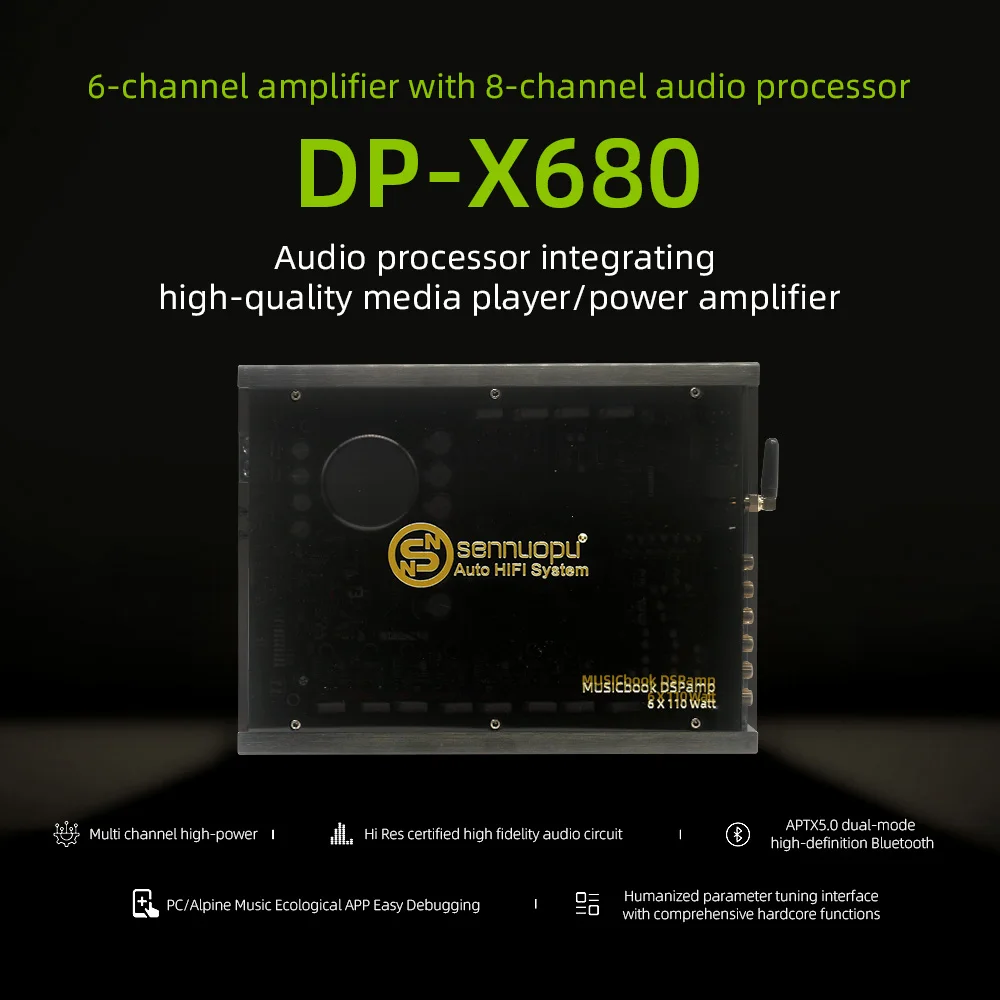

➤ Experience your music in Hi-Res with the versatile X680 6-Channel Amplifier with 8-Channel Digital Signal Processor, The highest power output in its category, you'll hear the hair-raising details of music with the most accurate sound reproduction for music that stays true to the artist's intention.
➤ Built-in 6*110 Watts power amplifier, with enough energy to push P65-242 2-way speaker with high dynamics, and the 5th and 6th channels can be bridged to push 450 Watts bass speaker.
➤ Easy plug-and-play and lossless installation.
➤ 8-channel DSP, each channel can be adjusted separately, allowing you to easily adjust your car Concert Hall.

▼▼PRODUCT OVERVIEW▼▼

➤ Experience your music in Hi-Res with the versatile X680 6-Channel Amplifier with 8-Channel Digital Signal Processor, The highest power output in its category, you'll hear the hair-raising details of music with the most accurate sound reproduction for music that stays true to the artist's intention.
➤ Built-in 6*110 Watts power amplifier, with enough energy to push P65-242 2-way speaker with high dynamics, and the 5th and 6th channels can be bridged to push 450 Watts bass speaker.
➤ Easy plug-and-play and lossless installation.
➤ 8-channel DSP, each channel can be adjusted separately, allowing you to easily adjust your car Concert Hall.

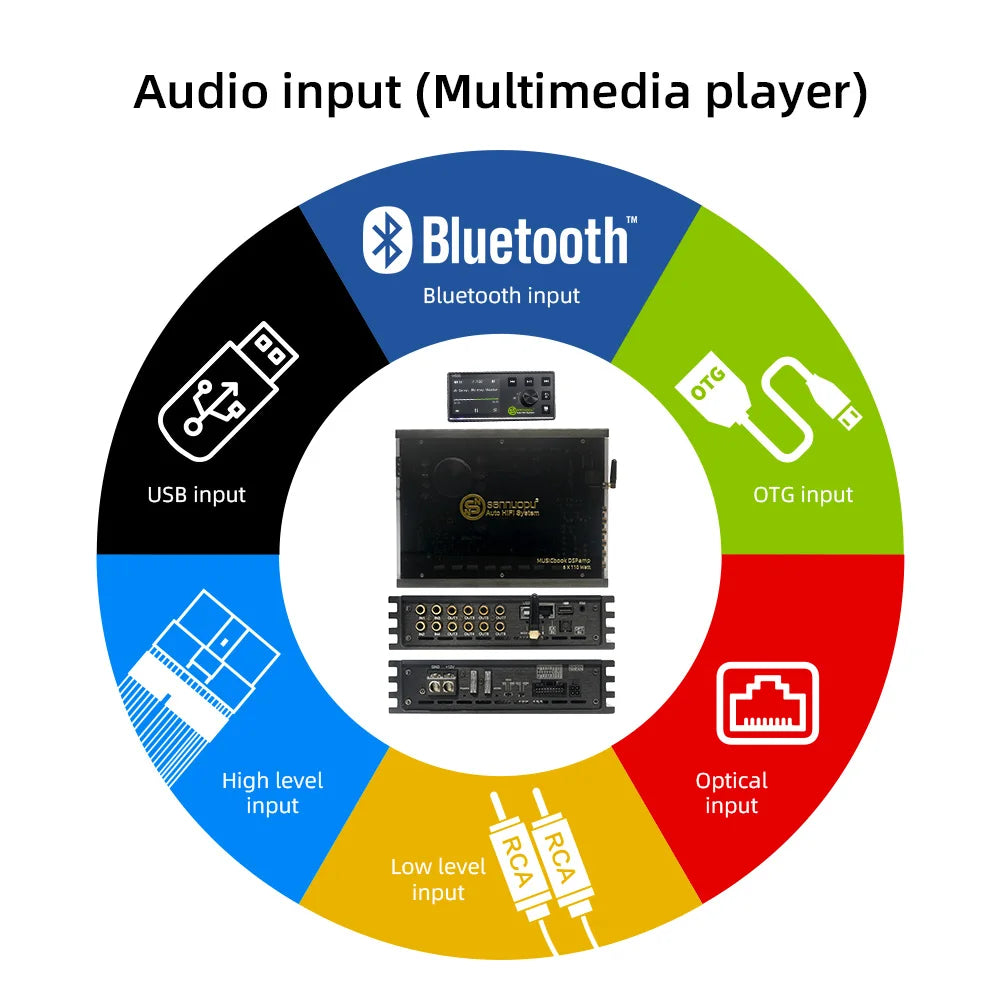

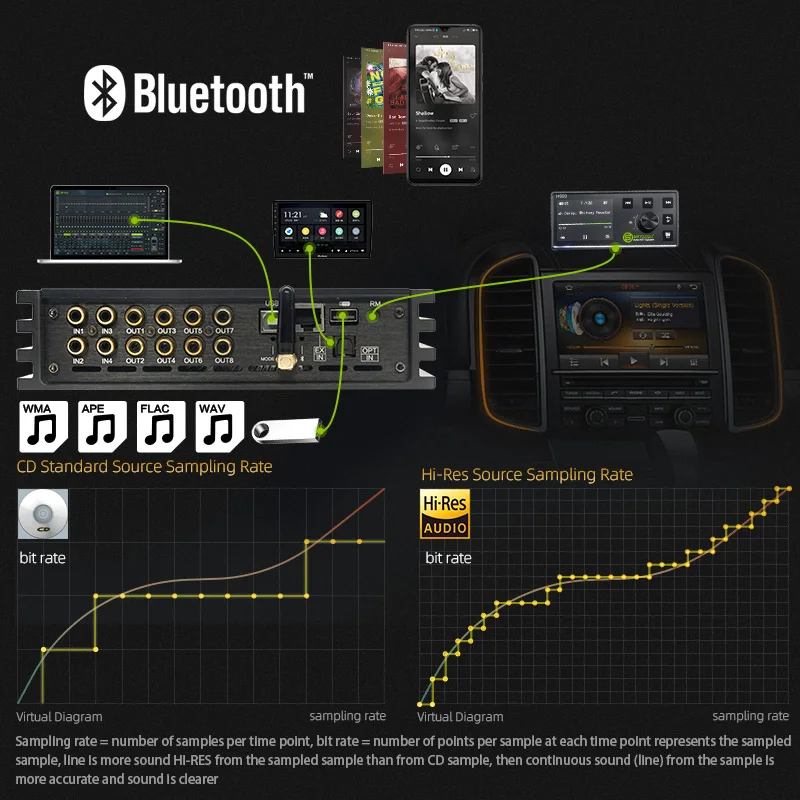

➤ X680 Features--Audio Media Player

X680 is a high-quality audio media player;
Application of HD Bluetooth player audio solution;
● Udisk playback input:Support Multiple Music Playing Formats(FLAC,APE,MP3,WAV,AAC,WMA)
● USB audio input : More and More Multimedia Playback Devices can be Expanded.
USB Format Support : FAT16/32, NTFS,
● Ooptical input : Optical Fiber Connection can Achieve Electrical Isolation and Prevent the Transmission of Digital Noise through The Ground Wire, which is Conducive to Improving the Signal-To-Noise Ratio (S/N) of DAC (Digital Analog Conversion).
Udisk playback input supports lossless playback (FLAC / APE / WAV / MP3 / WMA/FIA, etc.);
● Can supports LED remote controller
● Android head unit playback control. Need to download the APP we provide to install in the head unit.

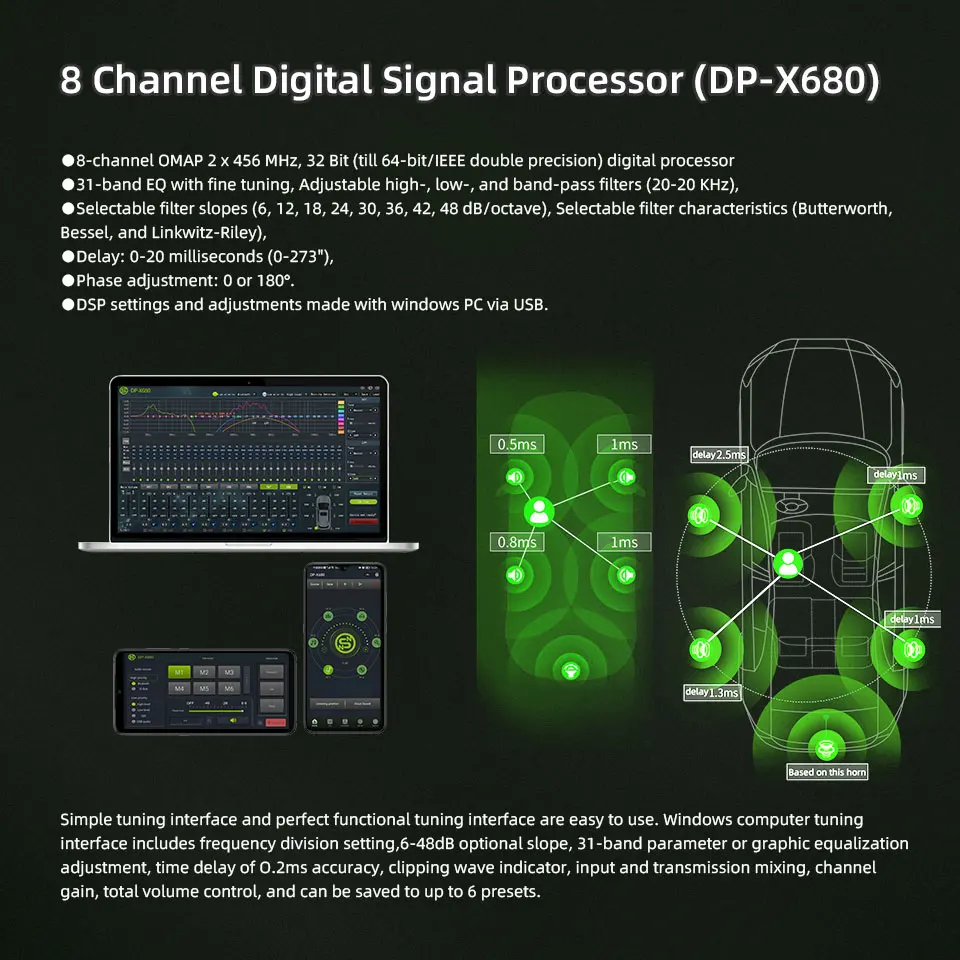

➤ X680 Features--8 CH Digital Signal Processor

X680 is also an 8 Channel Digital Signal Processor;
●8-channel OMAP 2 x 456 MHz, 32 Bit (till 64-bit/IEEE double precision) digital processor；
●31-band EQ with fine tuning, Adjustable high-, low-, and band-pass filters (20-20 KHz),
●Selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave), Selectable filter characteristics (Butterworth, Bessel, and Linkwitz-Riley),
●Delay: 0-20 milliseconds (0-273"),
●Phase adjustment: 0 or 180°.

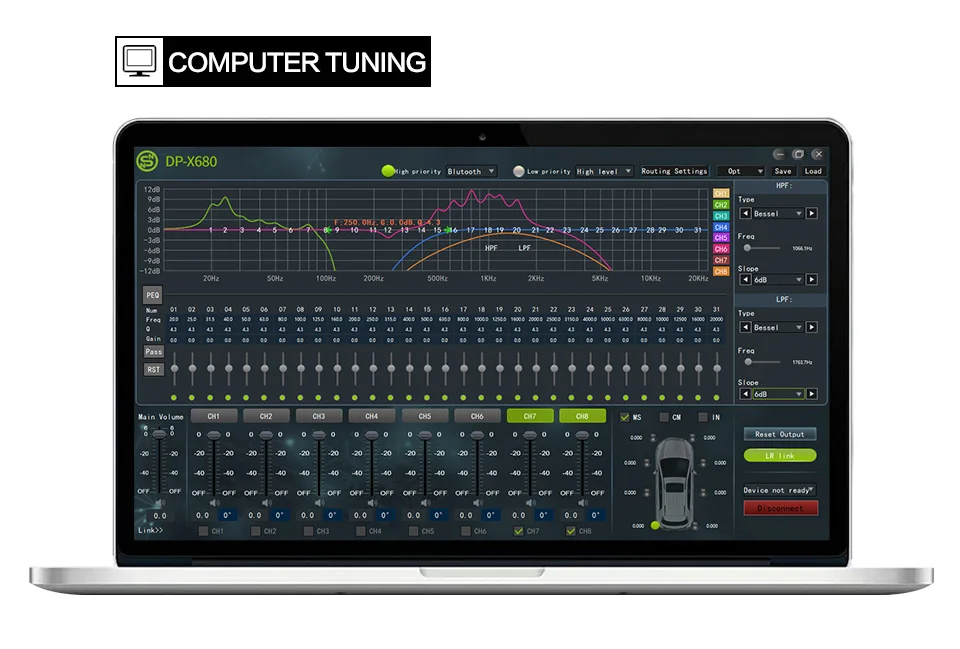

●DSP settings and adjustments made with windows PC via USB.
Note: The APP only supports Android phones and only supports more than 9.0 systems. IPhone is not supported.

➤ X680 Features--6 Channel Power Amplifier

X680 is a 6 Channel Power Amplifier;
6*110W @4Ω (Rated Power)
6*280W @4Ω (Maximum Power)
CH5 & CH6 Bridge--480W @4Ω ,Class AB

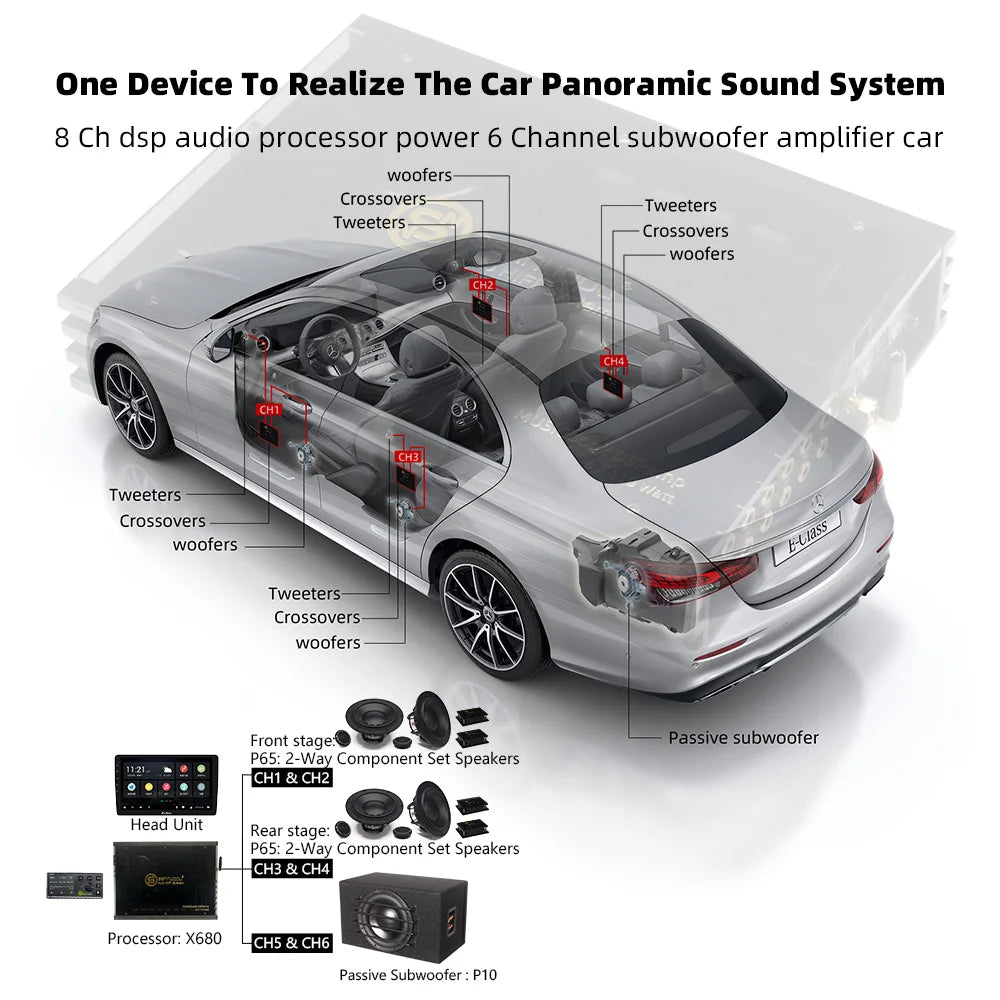

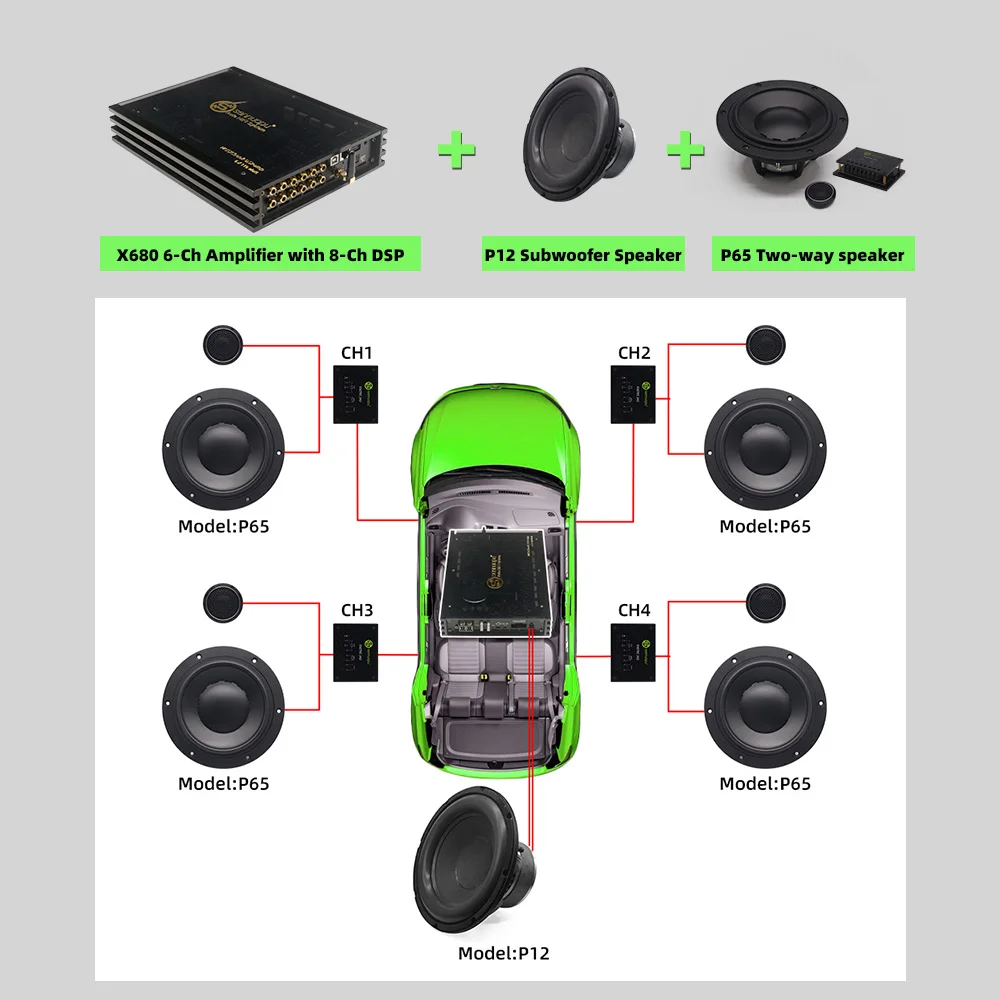

CH1~CH4 is responsible for promoting FF, FR, RF, RR channels. CH5 and CH6 bridge drive passive subwoofer

▼▼TECH SPECS▼▼

1. Type: 6 CH Amplifier with 8 CH DSP
2. Working voltage: 10V～17V
3. Dynamic range ≥110dB;
4. SNR ≥98dB;
5. Noise floor ≤32uVrms ;
6. Channel separation ≥90dB;
7. THD ≤0.05%;
8. Frequency response 20 Hz–20 kHz;
9. System sampling rate 24 bit/96 kHz;
10. High level input: 4 channels
11. RCA input: 4 channels
12. Bluetooth input: Bluetooth 5.1
13. USB input: FLAC/APE/WAV/MP3/WMA/FIA etc.
14. Optical input: support
15. Sound card input: support
16. High level output: MAX 280 Watts *6 @4Ω
17. High level output: RMS 110 Watts *6 @4Ω
18. CH5 & CH6 Bridge--480 Watts @4Ω;
19. RCA output: 8 channels
20. 31 band equalizer: adjustable 20-20 KHz
21. Filter: Linkwitz-Riley, Bessel, and Butterworth;
22. Filter slope: 6~48 dB/Octave;
23.Delay: 0-20 milliseconds (0-273 inches)

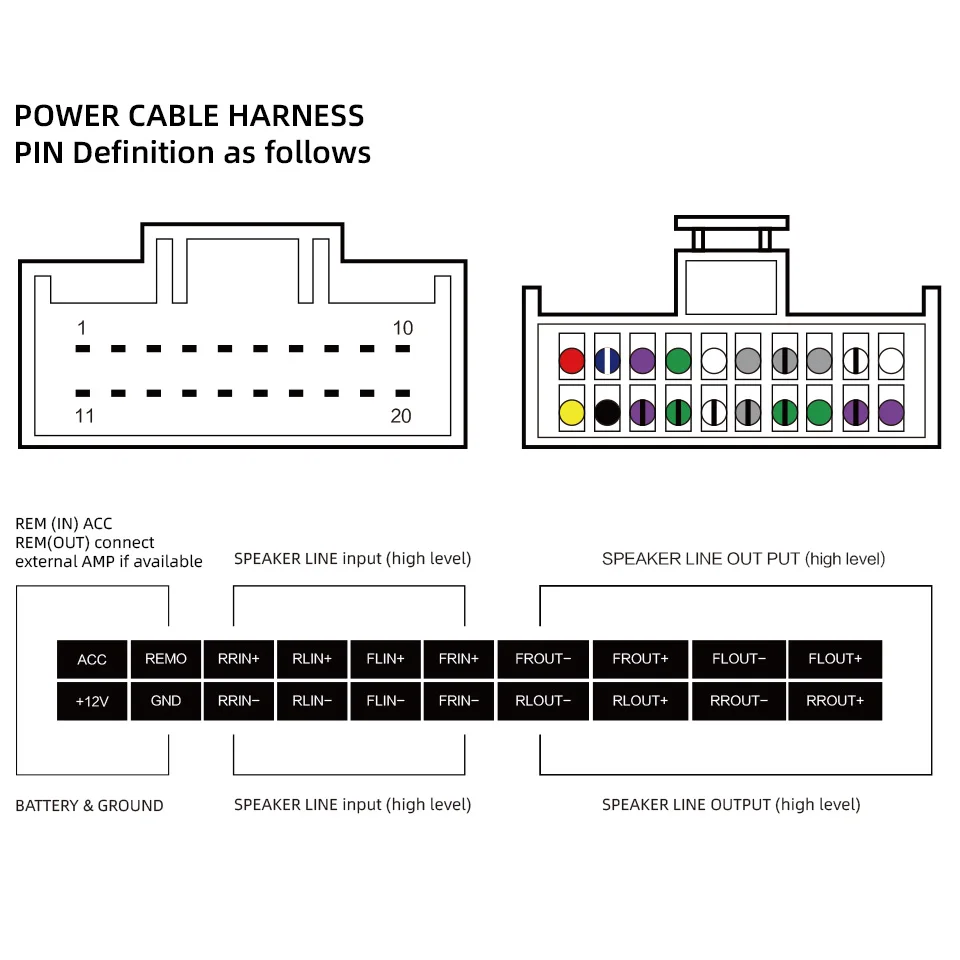

▼▼Installation Guide▼▼

●Support plug-and-play installation of special car wiring harness, each model is different, please contact us to inquire your model.
●Note: Additional purchase is required for special car wiring harness
●Suitable for Volkswagen, BMW, Toyota, Honda, Peugeot, etc.

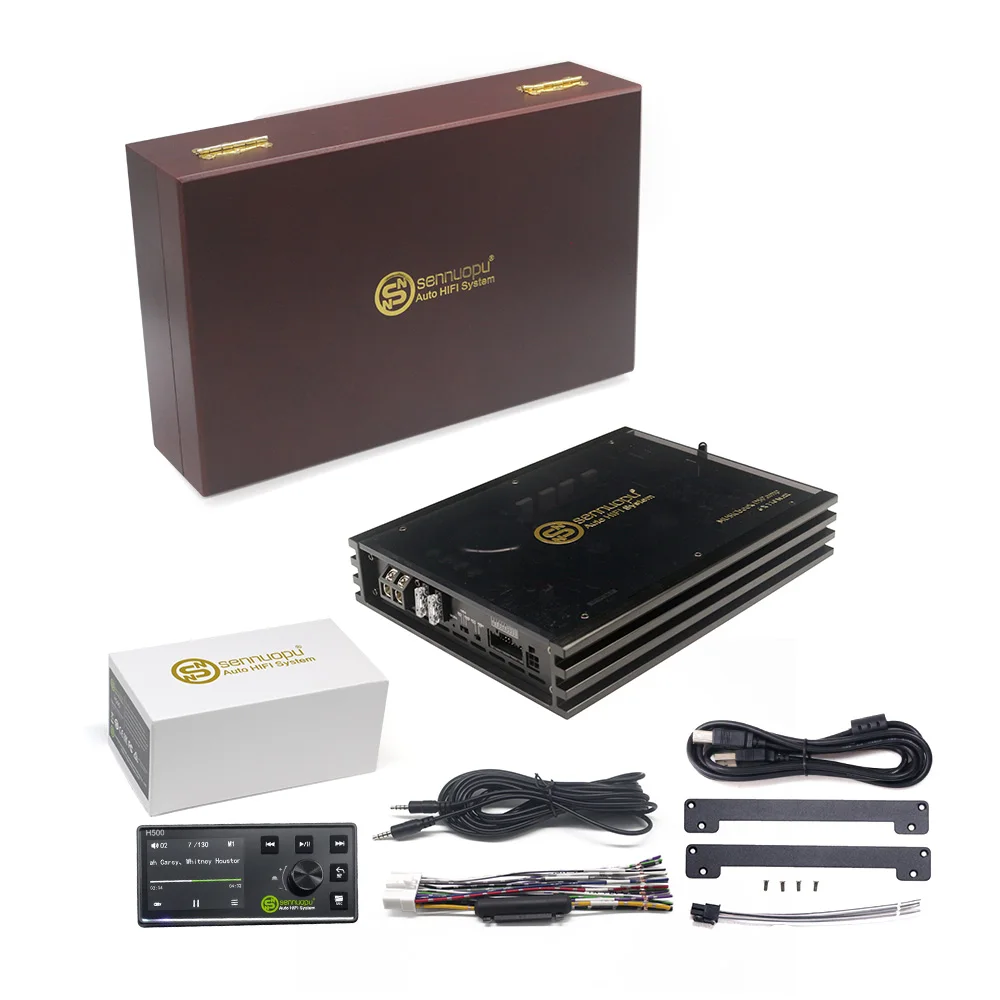

▼▼What's in the package▼▼

▼▼How to download tuning software▼▼

Step 1: open Google browser
Step 2: click the search box, display below, scan the QR code icon, click
Step 3: scan the scan frame to the QR code
Step 4: at the bottom of the page, click download
