SPECIFICATIONS



Certification: CE



Channels: 2

FOSI AUDIO Model: zd3

Maximum Power Per Channel: Above 200W

Model Number: ZA3

Package: Yes,ZA3 with 32V power supply

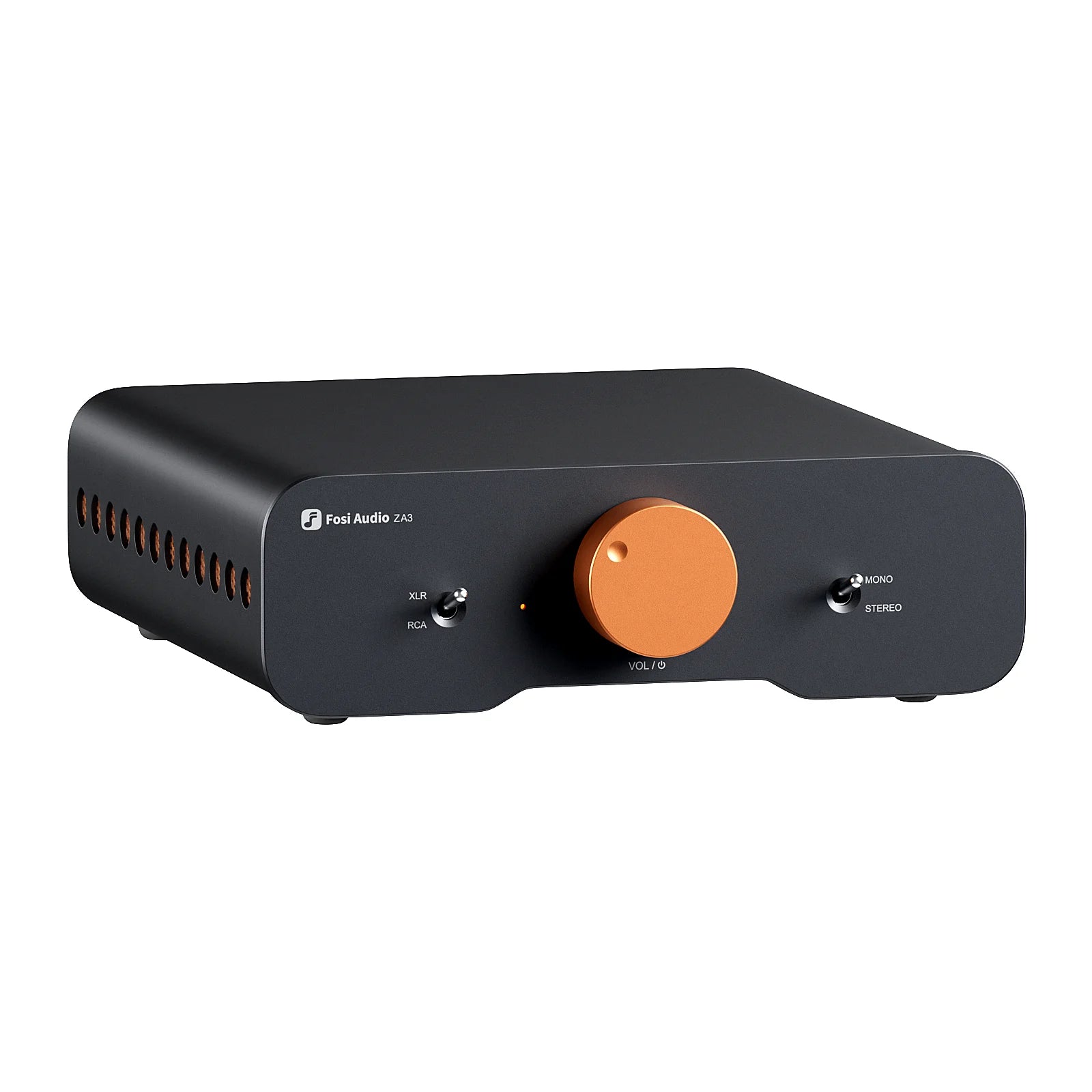

Fosi Audio ZA3 Stereo Power Amplifier TPA3255 Class D HiFi Audio Amp for Passive Bookshelf Speaker With XLR/RCA/Balanced Input





Highlight:

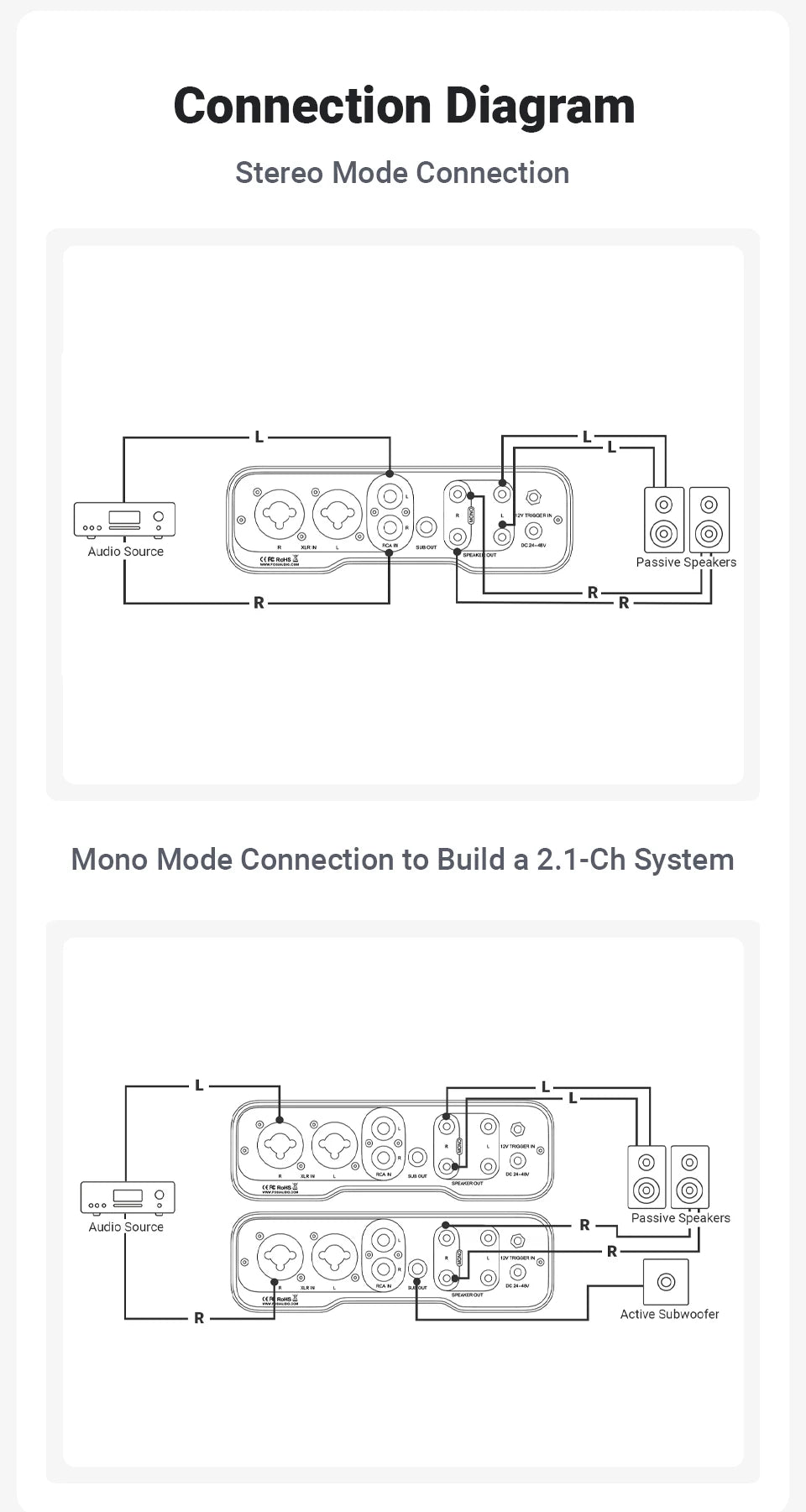

• Dual-Mode Innovation: This new generation mini amplifier offers both stereo and mono modes, adapts flexibly to your diverse needs, allowing seamless mode switching. In stereo mode, it delivers a robust output of up to 180W, while in mono mode, the power soars to a maximum of 235W. Pair two ZA3 units in mono configuration to create a powerful audio system, significantly enhancing your listening experience.

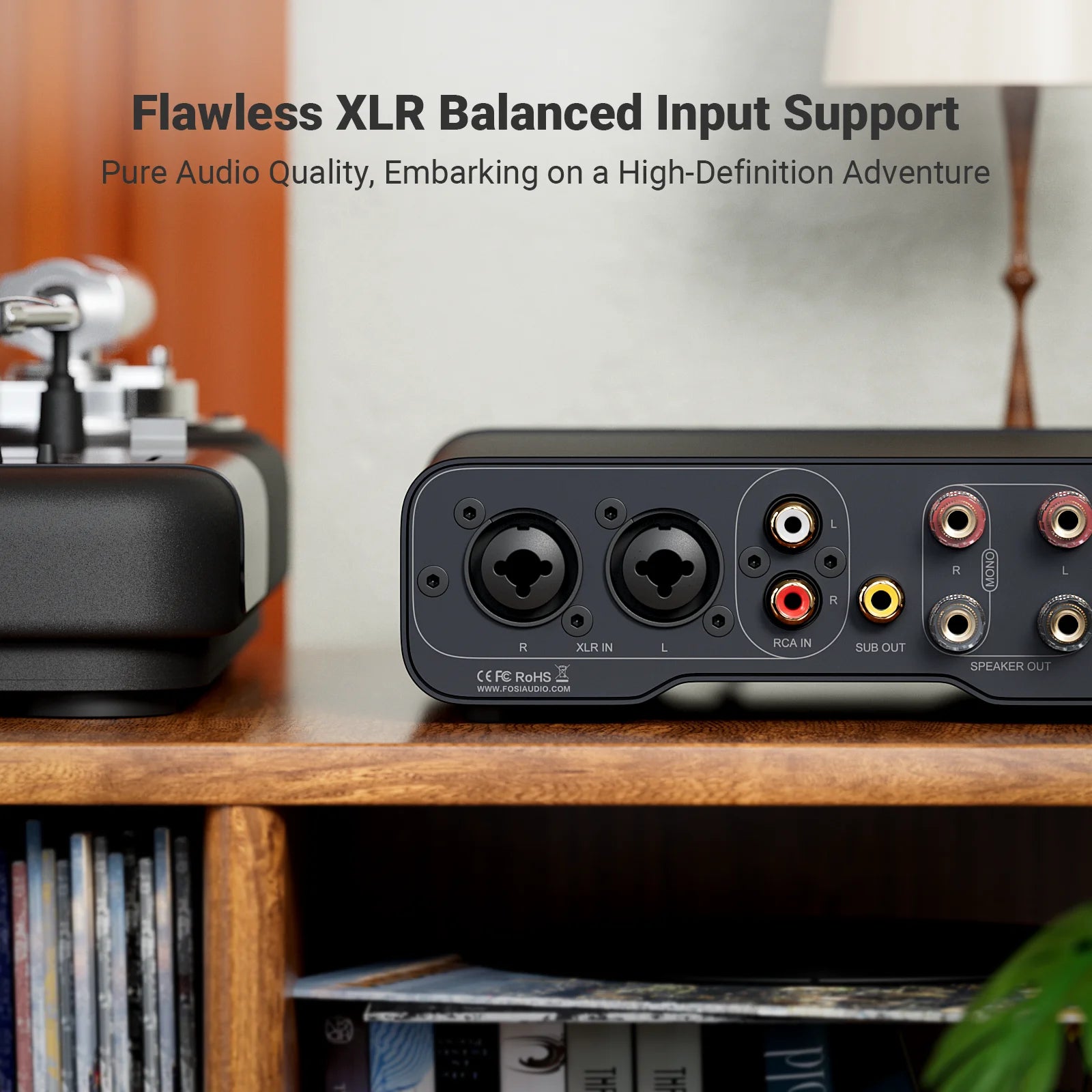

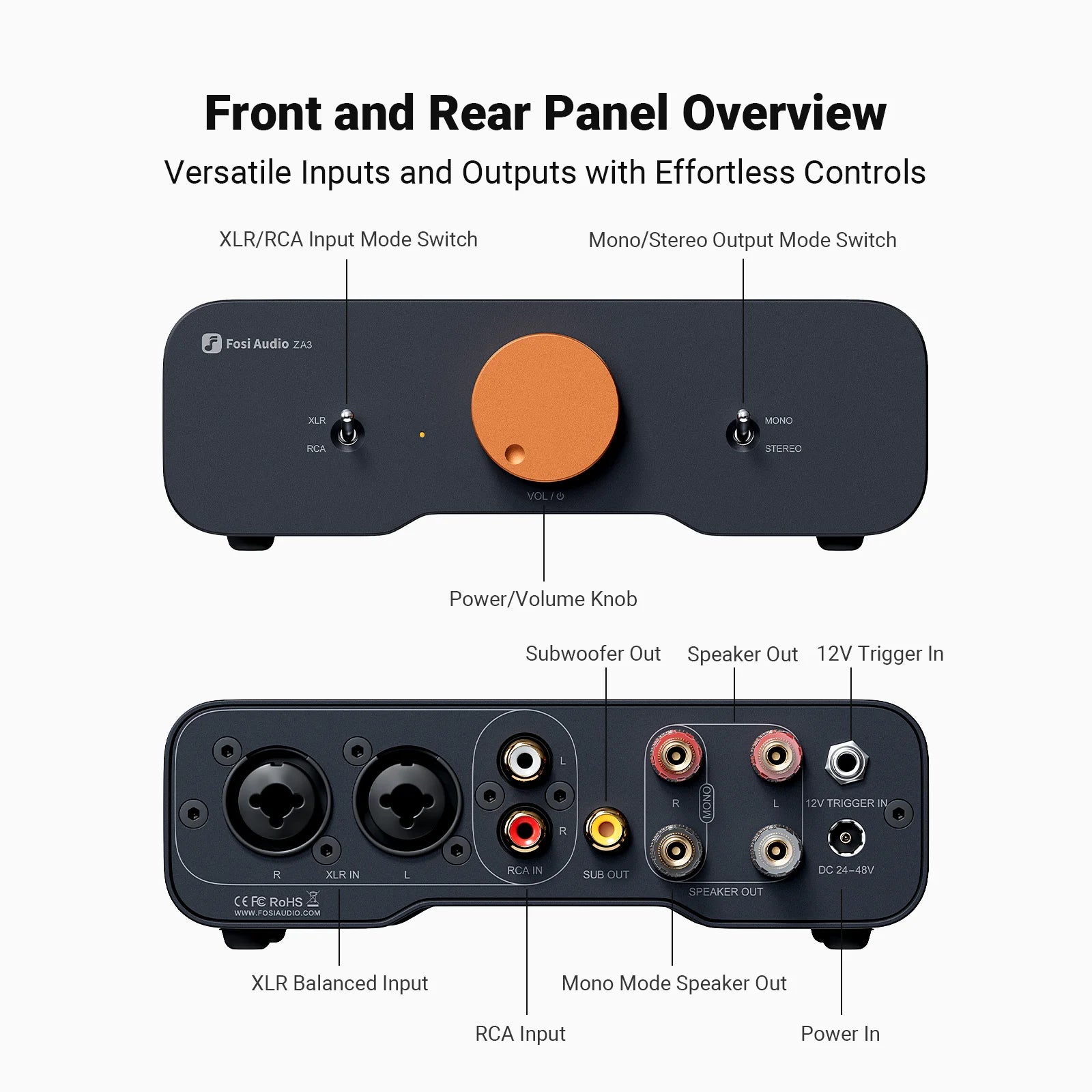

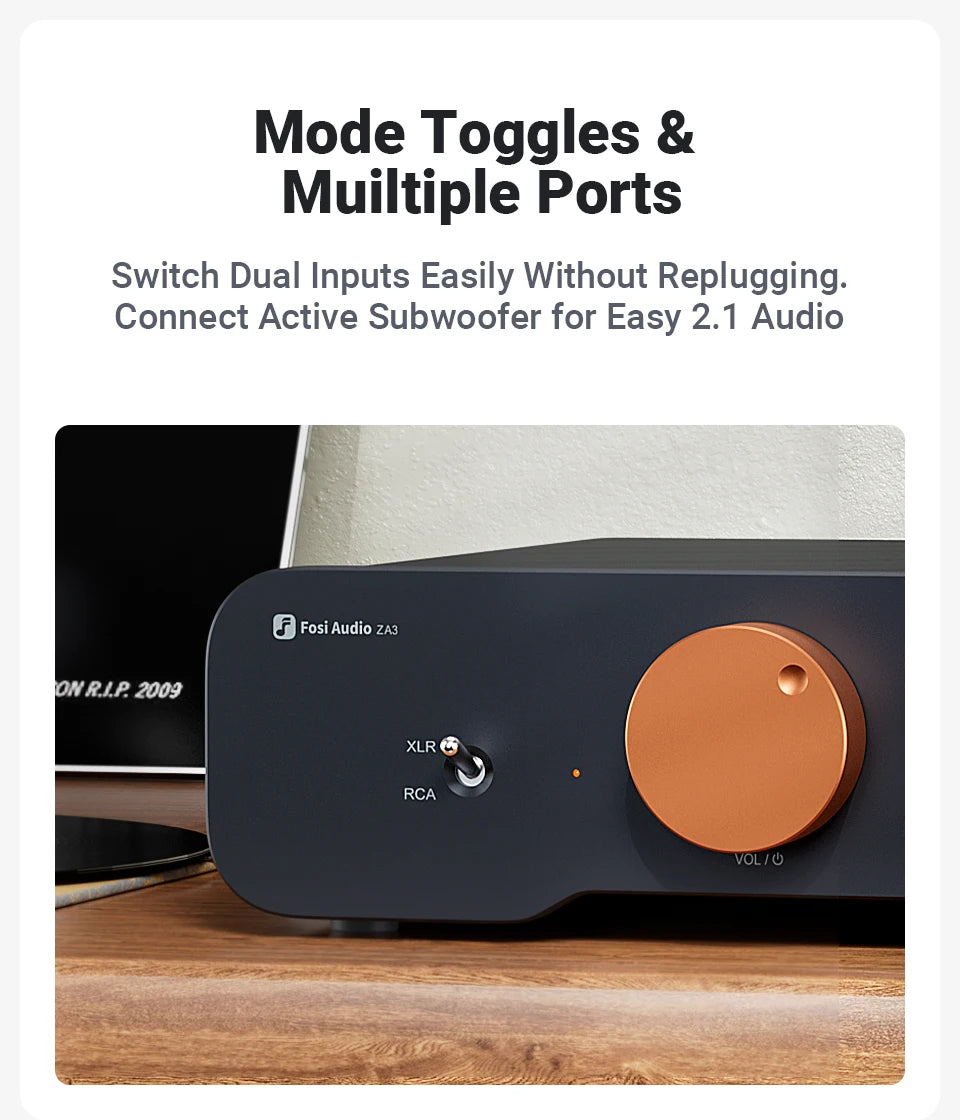

• Richer Connectivity: Debut amplifier with balanced input and trigger in, the ZA3 features a balanced combo audio signal input connector supporting both XLR and 1/4" TRS plugs. This design minimizes interference and reduces noise floor. The 12V trigger-in connector enables synchronization with other devices, streamlining the process of turning on/off without individual operations.

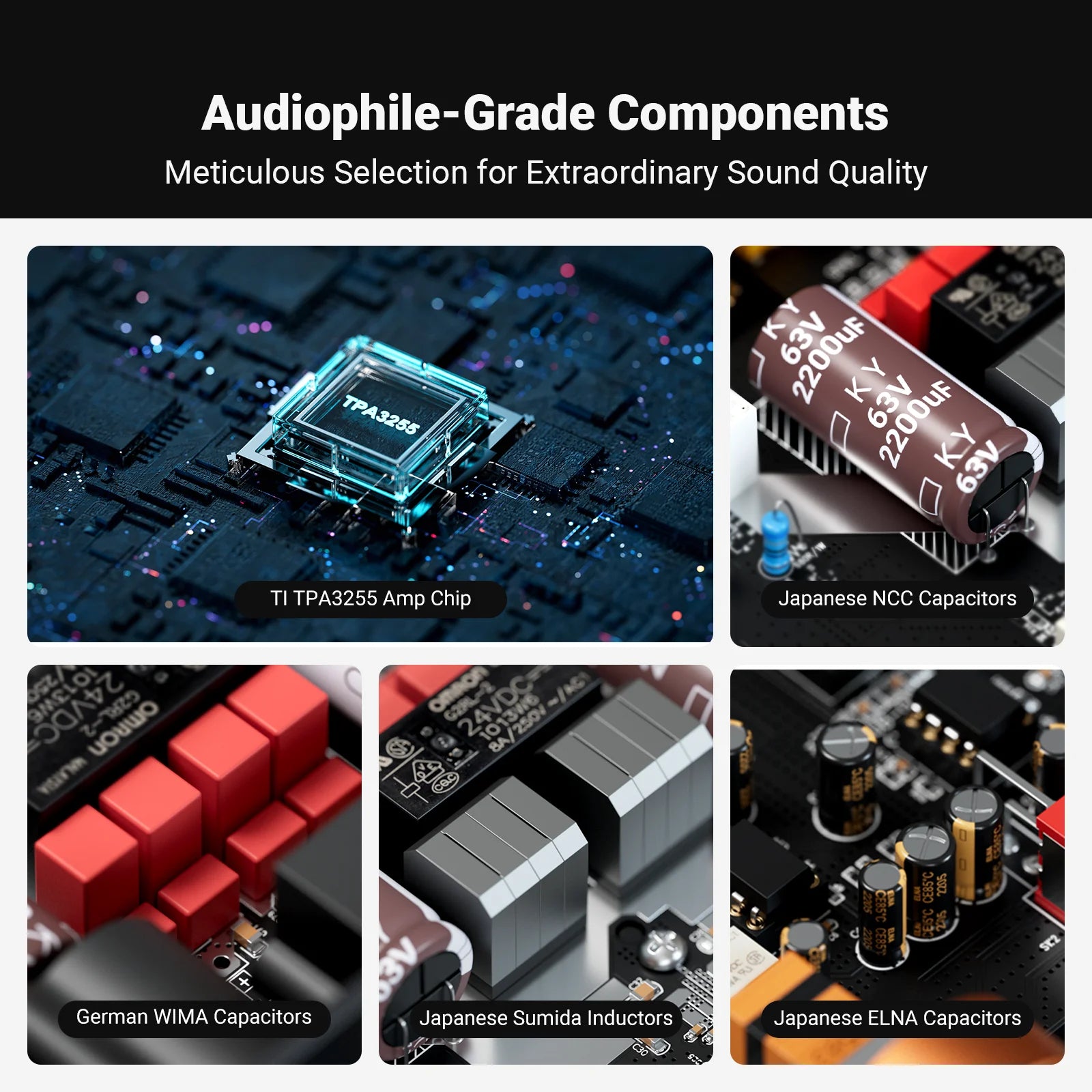

• Audiophile-Grade Components: The ZA3 features the TPA3255 high-end Class-D amp chip and utilizes premium Japanese NCC, ELNA, and German WIMA capacitors, and Japanese Sumida inductors for exceptional audio quality. With a SINAD rating of up to 89dB, an SNR of up to 106dB, and a low noise floor of only 150μV, it delivers exceptional clarity and low distortion.

• Advanced Heat Dissipation: Based on V3's groundbreaking heat dissipation design, we upgraded ZA3's cooling system by featuring a larger chassis, moving vents to the sides, and adding dust covers to achieve better ventilation for a sustained and stable high power output.

• Enhanced Scalable Fun: Personalize your audio experience with the op-amp rolling feature! The ZA3 stocks five swappable op-amps for left and right channel outputs, balanced input, and subwoofer output. Experiment with compatible DIP8 dual op-amps such as Sparkos SS3602, MUSES02, OPA2604, OPA2134PA, OP249, AD827, RM4558, LM4562, LME49720HA, etc. to fine-tune your sound to perfection.

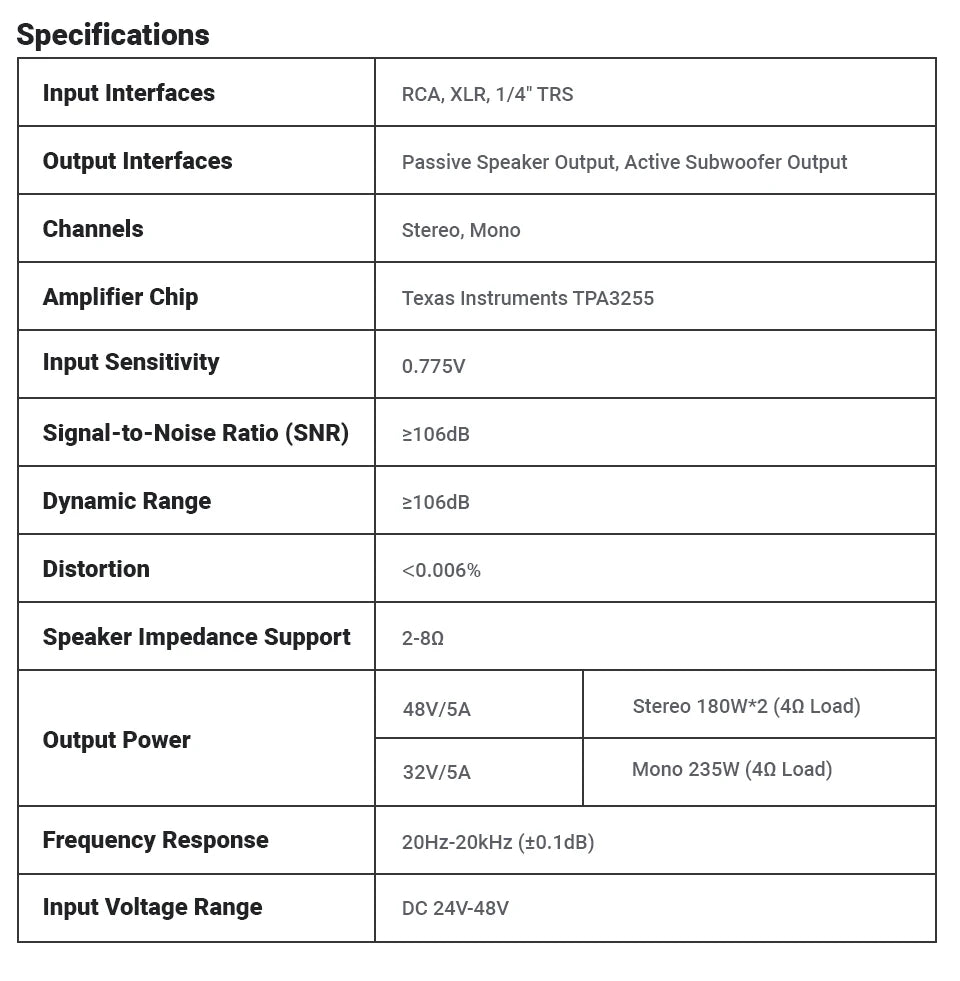

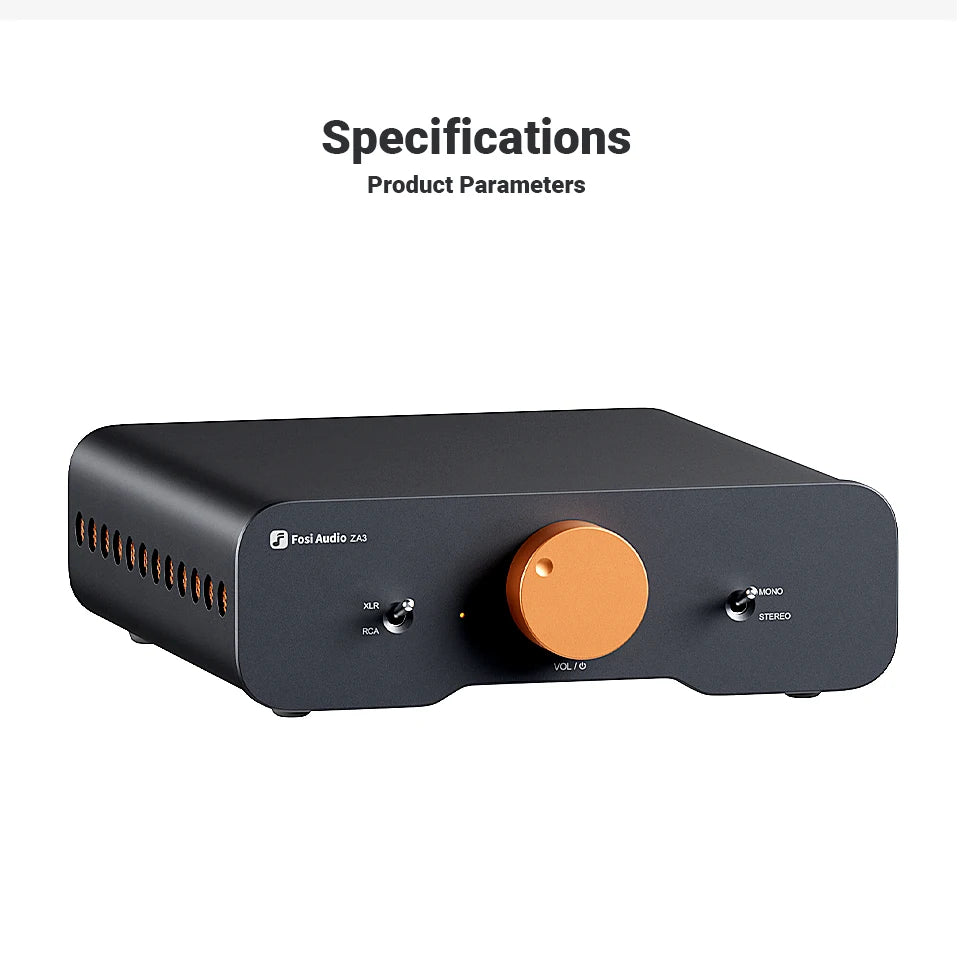

Specifications:

• Max Power Output:

                                         180Wx2 @4Ω Stereo(with 48v power supply)

                                         235W @4Ω Mono(with 48v power supply)

                                         95x2W @4Ω Stereo(with 32v power supply)

                                        110W @4Ω Mono(with 32v power supply)



• SINAD: 89dB

• SNR: ≥106dB

• Terminating Impedance: 2-8Ω

• THD: 0.006%

• Power Amp Chip: TI TPA3255

• Op-Amp: TI NE5532 x2

• Power Supply: 32V/5A, 48V/5A

• Input Range: DC 24V-48V

• Frequency Response Range: 20Hz-20kHz(±1.2dB)







Package Include:



*ZA3 Power Amp *1

*32V Power Adapter*1

*User Manual *1
