SPECIFICATIONS



Certification: CE



Channels: 2.0

FOSI AUDIO Model: BT20A PRO

Maximum Power Per Channel: Above 200W

Model Number: BT20A Pro

Package: Yes

Parts: Adapter



Fosi Audio BT20A Pro TPA3255 Bluetooth Sound Power Amplifier 300W x2 Mini HiFi Stereo Class D Amp Bass Treble For Home Theater

Highlight:

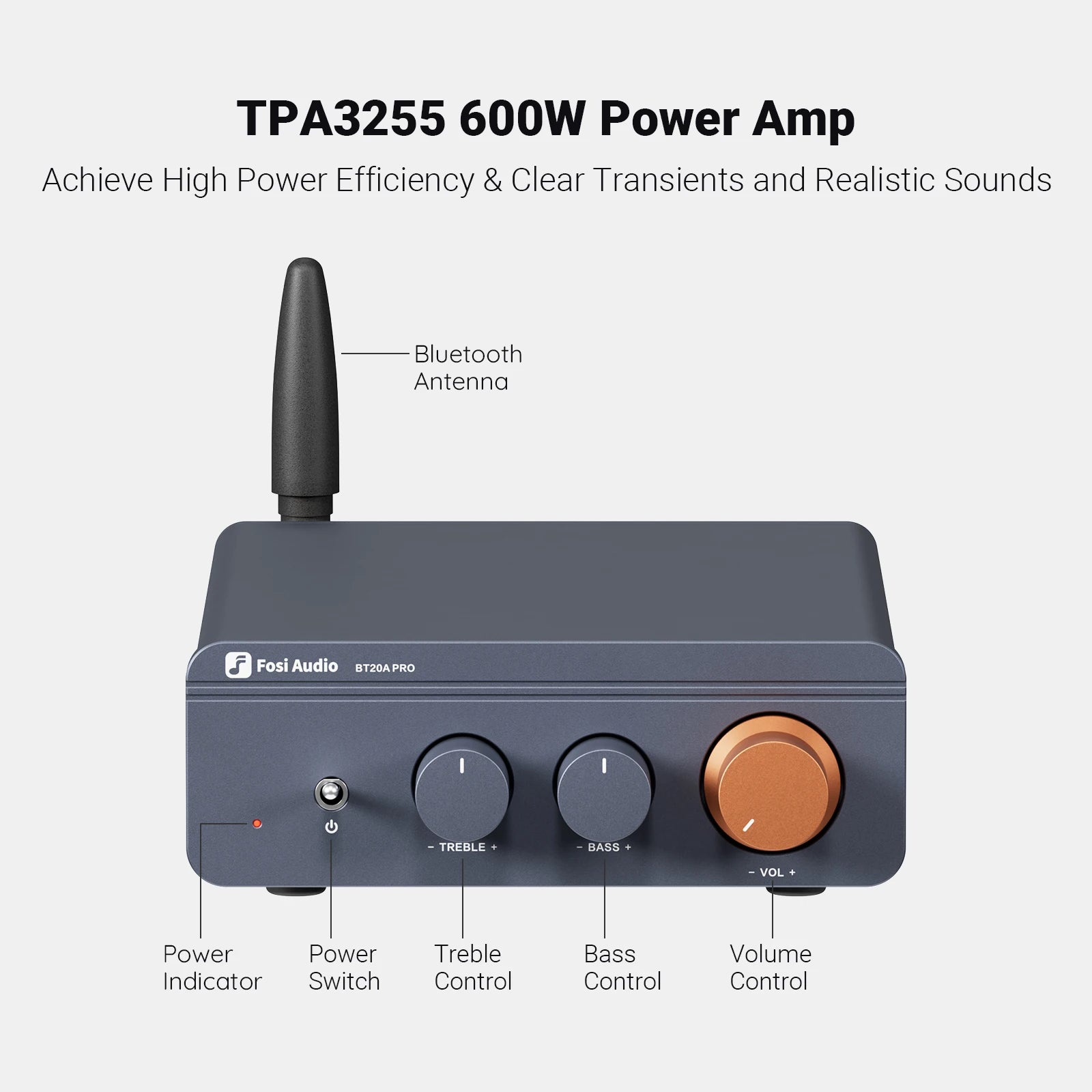

1. Bass & Treble Control with Midpoint Positioning

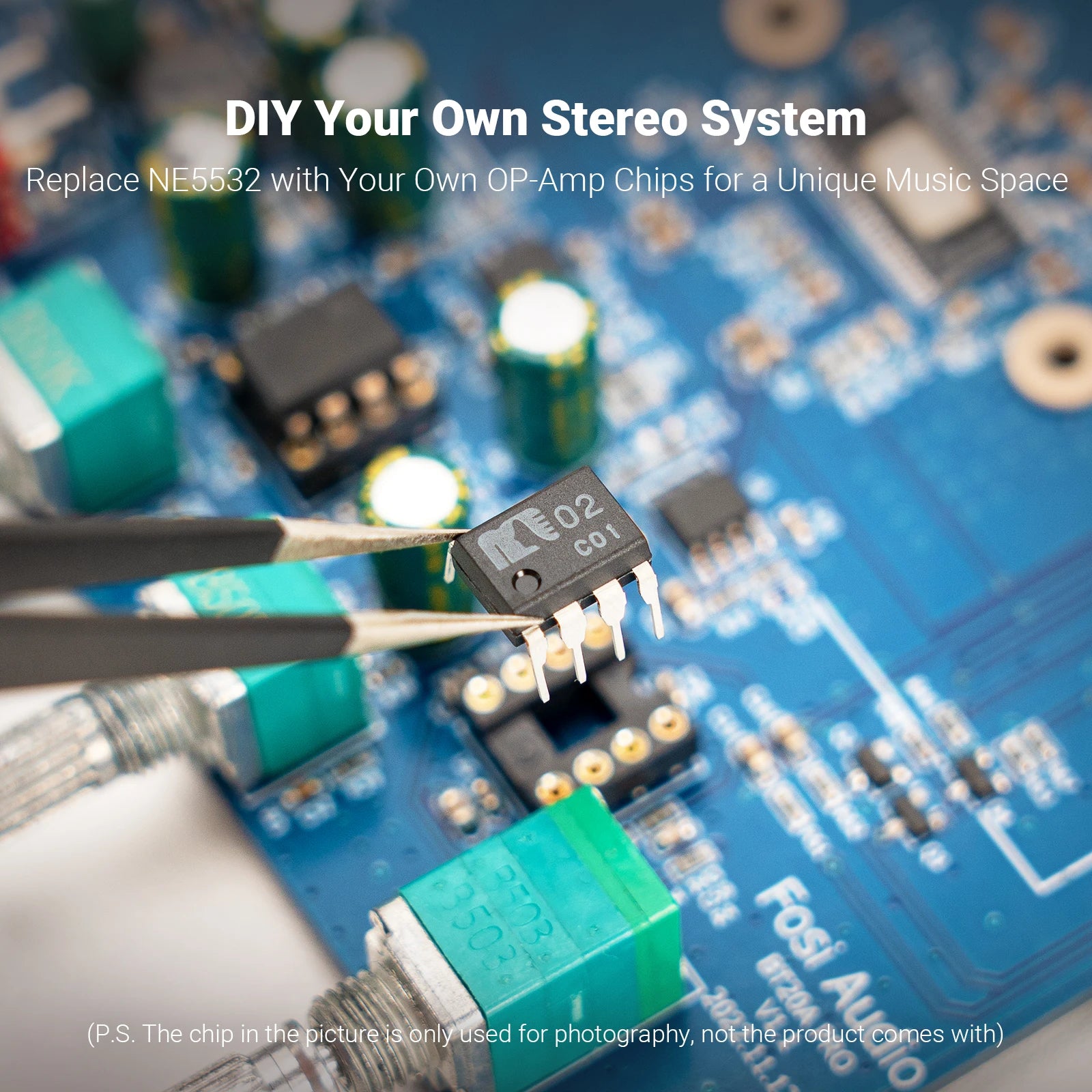

2. Replaceable Op-Amp Chips: MUSES02, OPA2134PA, OPA2604AP

3. Passive Speakers + Pre-out

4. Bluetooth Pairing Cleared

5. Replaceable Knobs: ORANGE KNOB, GRAY KNOB,





Features:

• Advanced 2.0CH Bluetooth 5.0 Receiver Amplifier achieves HiFi music quality, the best choice for your home audio entertainment.

• Fosi Audio BT20A Pro is the upgraded version for BT20A. All-NEW Aluminum Appearance. MAX Power Output: 300 Watt x2, Amplifier Chip: TPA3255.

• BT20A Pro Adopts Texas Instruments TPA3255 high-performance Class-D power amplifier chip. BT20A Pro can drive up to 2 x 300 W into 4-Ω load. In addition to excellent audio performance, TPA3255 achieves both high power efficiency and very low power stage idle losses below 1 W. This is achieved through the use of 60 mΩ MOSFETs and an optimized gate driver scheme that achieves significantly lower idle losses than typical discrete implementations.

• Professional wireless amp with subwoofer frequency, master volume/bass/treble control. No pop sound, no audible noise during the connection. Have a good time with Hifi music journey.

• We offer 24-month warranty, and friendly customer service!



Highlight:



• Model: BT20A Pro

• Power amplifier chip: TPA3255 NE5532

• DC Input Range: 24-48V

• Terminating Impedance: 2 Ohm - 8 Ohm

• MAX Power Output: 300W x 2 (4 ohm/32V Load)

• THD ≤ 0.005%

• Frequency Range: 20Hz - 20kHz (±1.2 dB)

• SNR ≥ 108dB

• Input Sensitivity ≤ 775mV

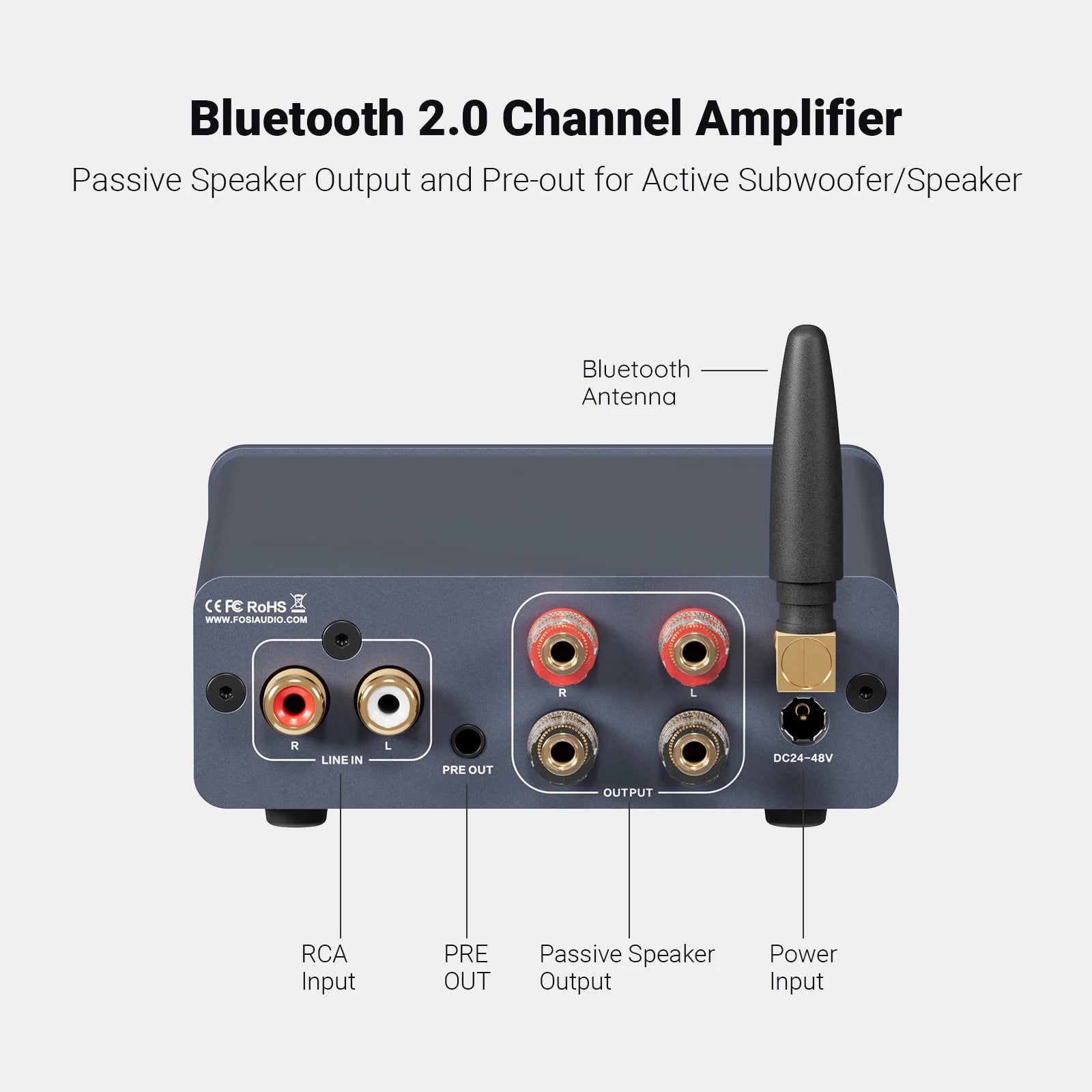

• Input Mode: Bluetooth & RCA

• Bluetooth version: Bluetooth 5.0 (50Ft without obstruction)





Package Include:

*BT20A Pro Bluetooth Amplifier x1

*User Manual x1
