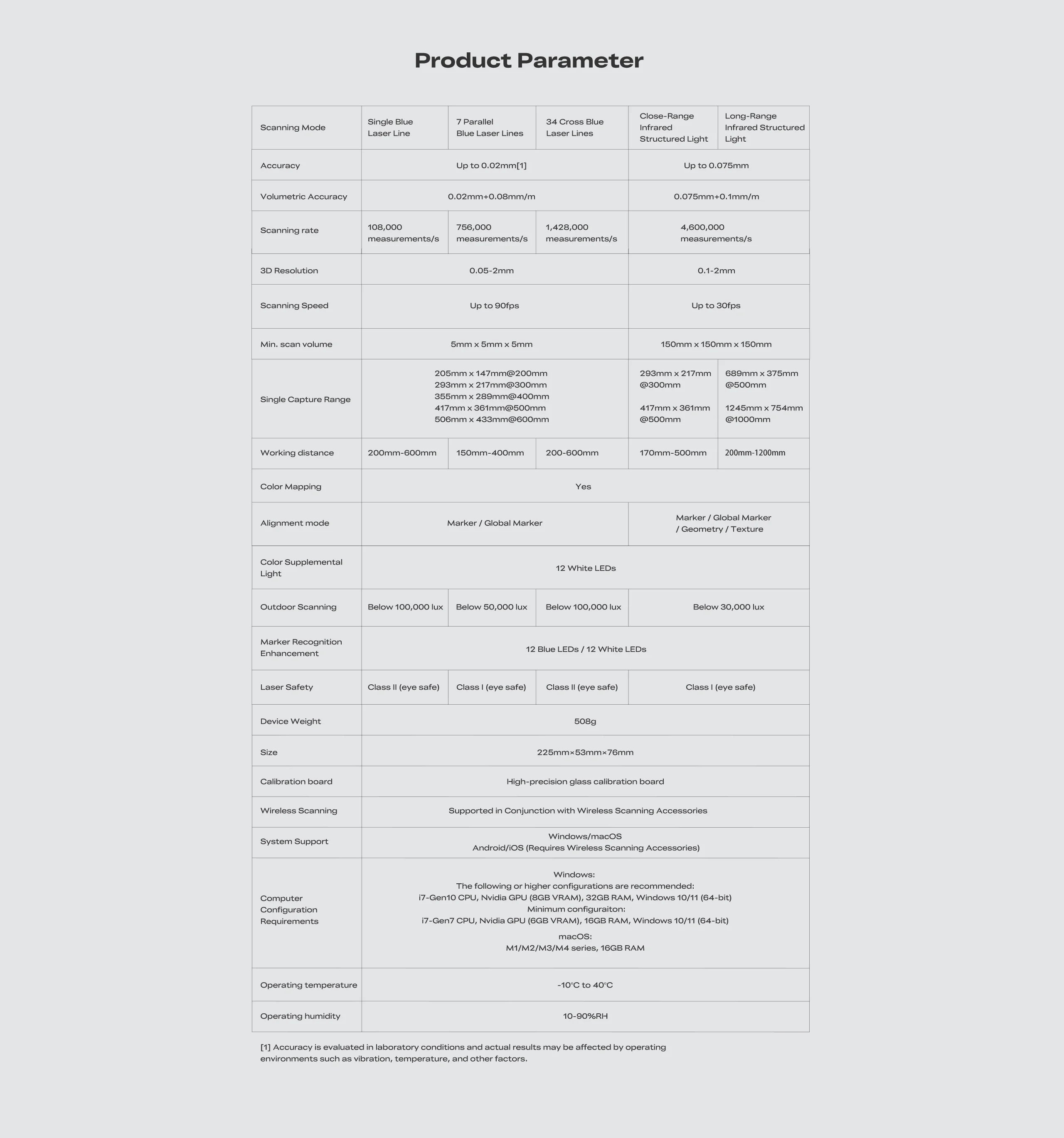

SPECIFICATIONS

Battery Included: No

Certification: CE

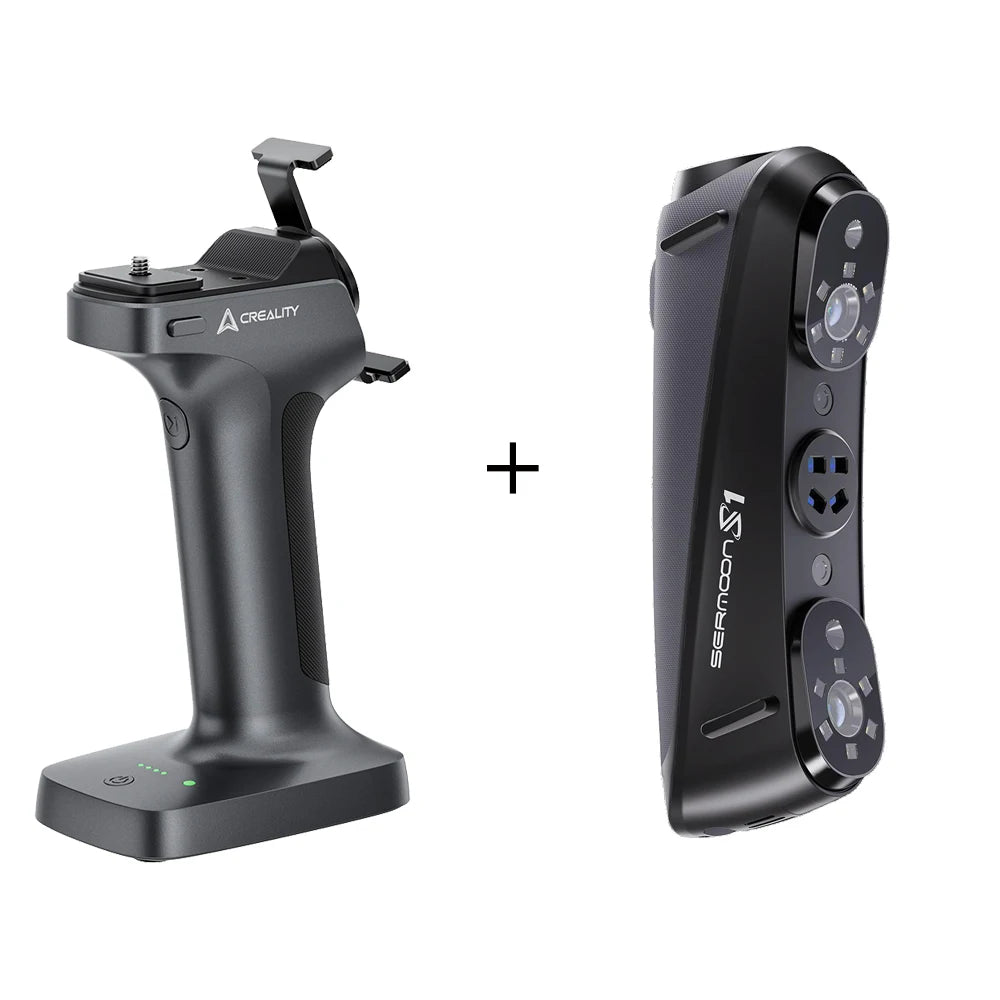

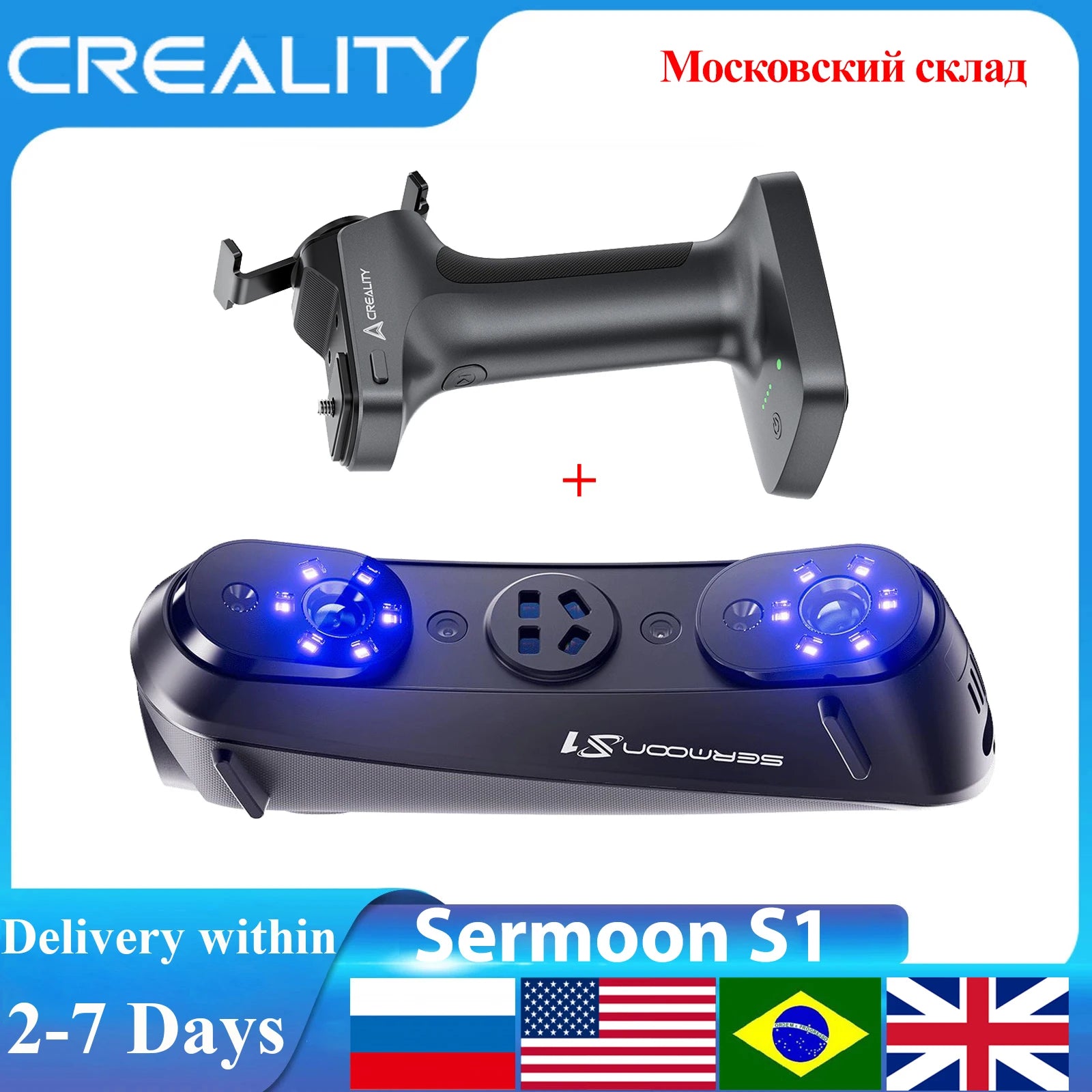

Model Number: Sermoon S1

Non-Contact Active: Handhold Laser

Non-Contact Passive: Photometric Stereo

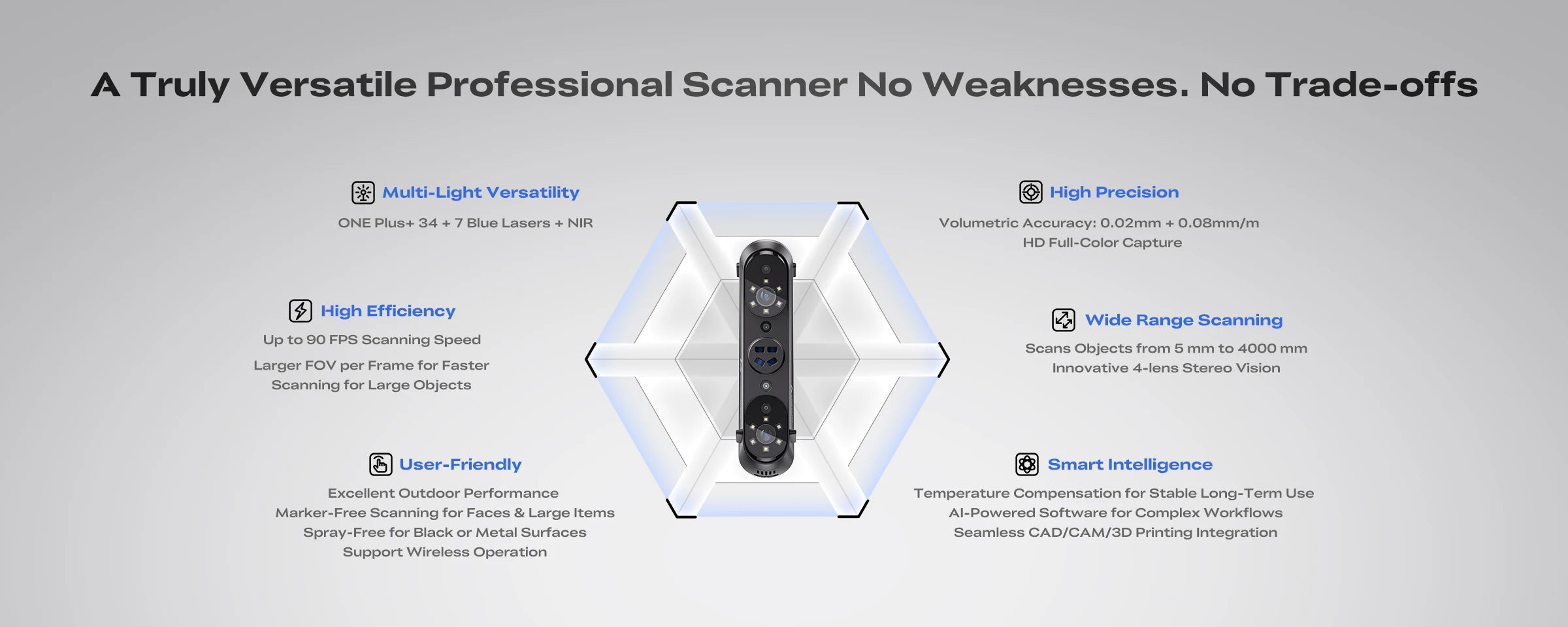

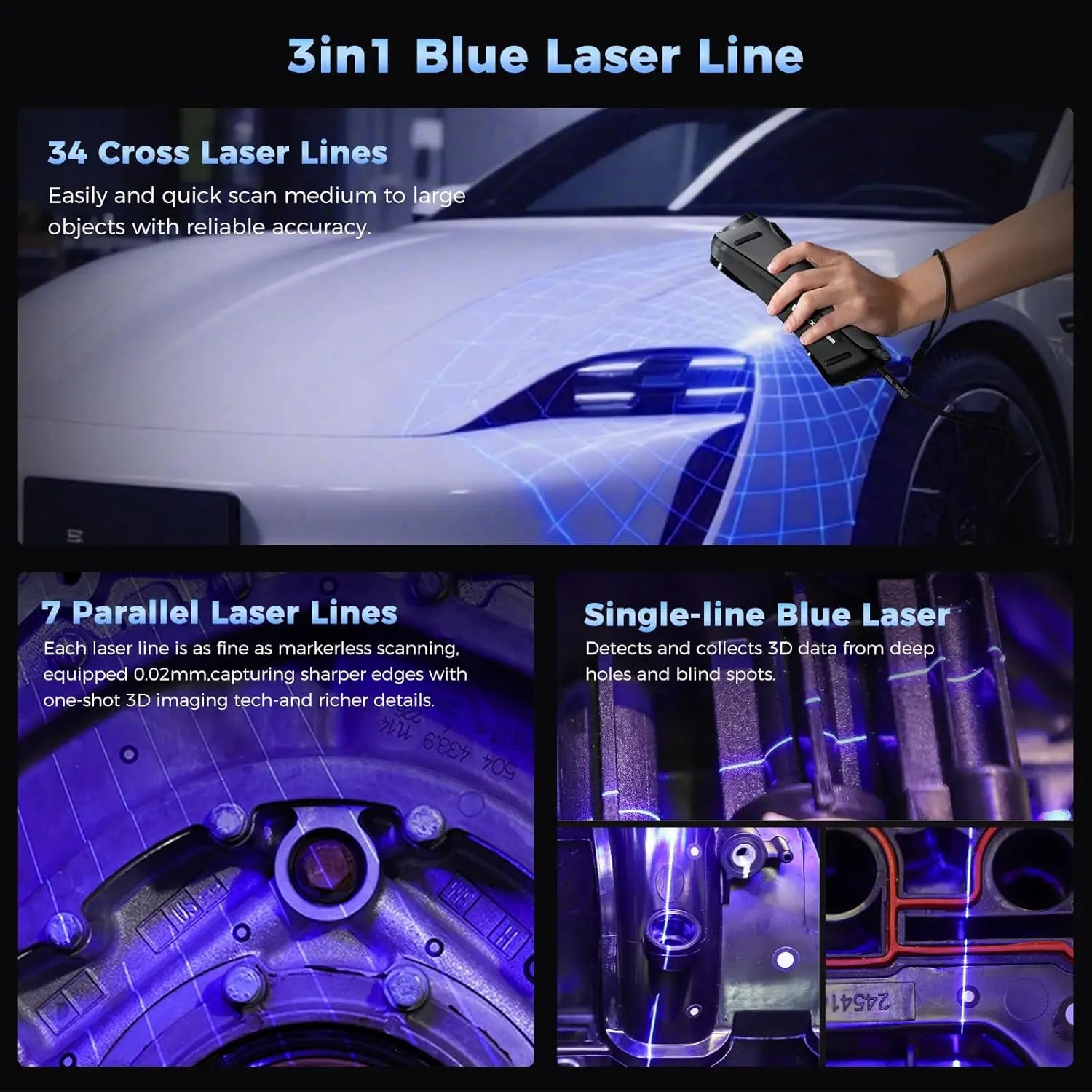

Scanning Mode : Blue Light(7 blue parallel laser lines&34 cross blue laser lines) / NIR(infrared binocular structured light)

>>Blue Light Mode: (1 blue laser lines | 7 blue parallel laser lines | 34 cross blue laser lines)

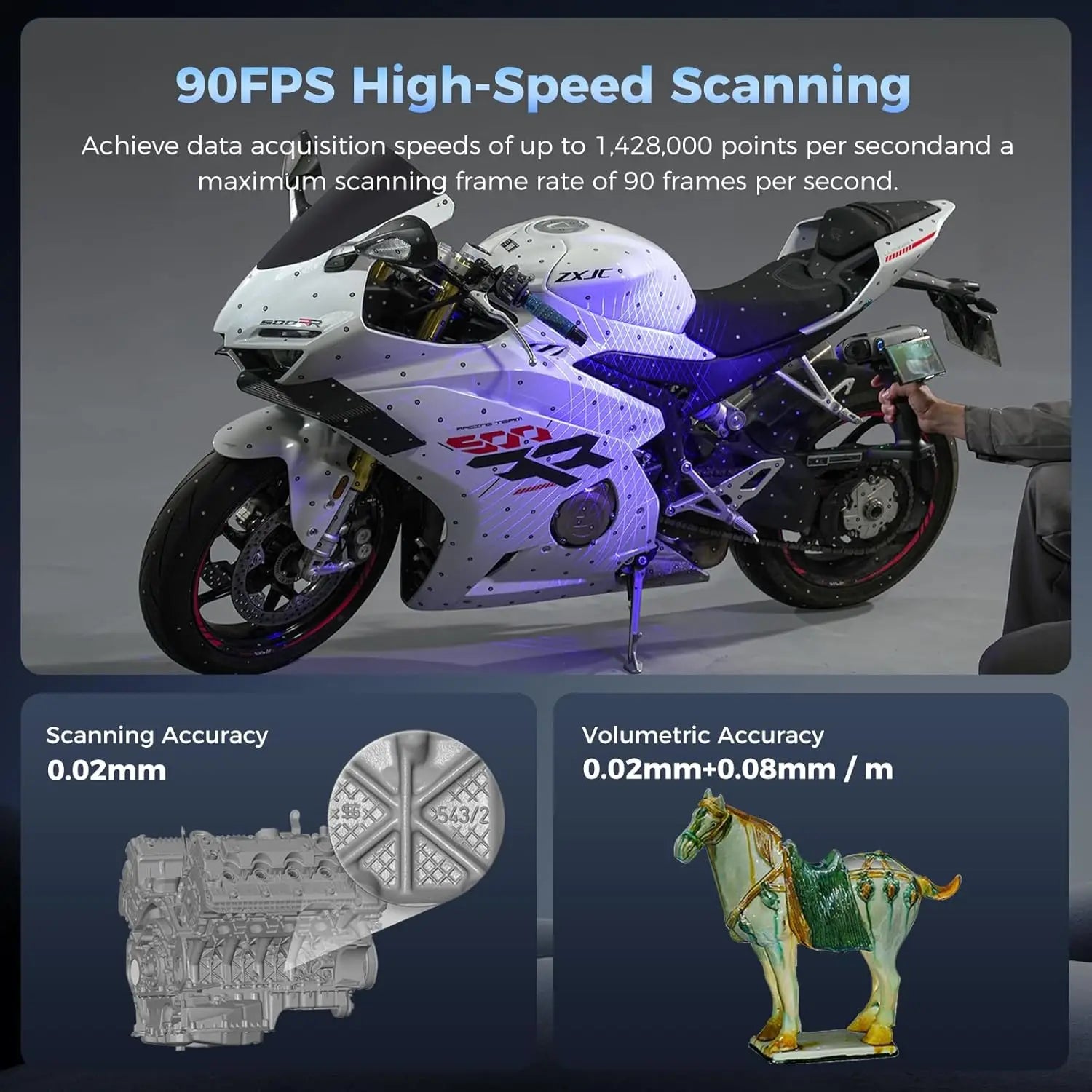

Accuracy: Up to 0.02mm
Volumetric Accuracy: 0.02+0.08mm/m
Minimum scanning volume: 5mm x 5mm x 5mm

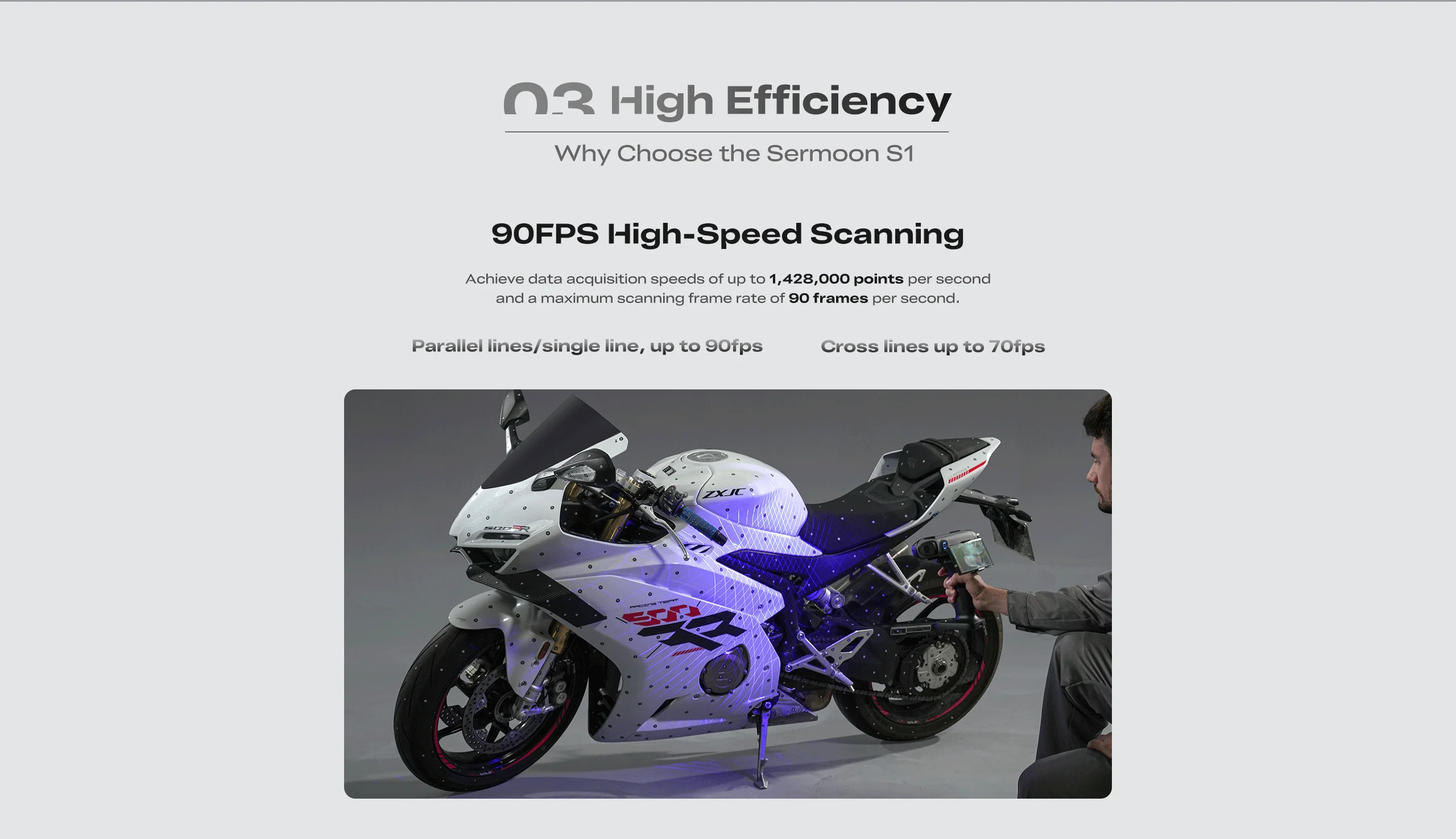

Scanning Speed: 108,000 measurements/s | 756,000 measurements/s | 1428,000 measurements/s
Single Capture Range: 205mm x 147mm@200mm 293mm x 217mm@300mm 355mm x 289mm@400mm 417mm x 361mm@500mm 506mm x 433mm@600mm
Working distance: 200-600mm | 150-400mm | 200-600mm
Outdoor Scanning: Below 100,000 lux | Below 50,000 lux | Below 100,000 lux

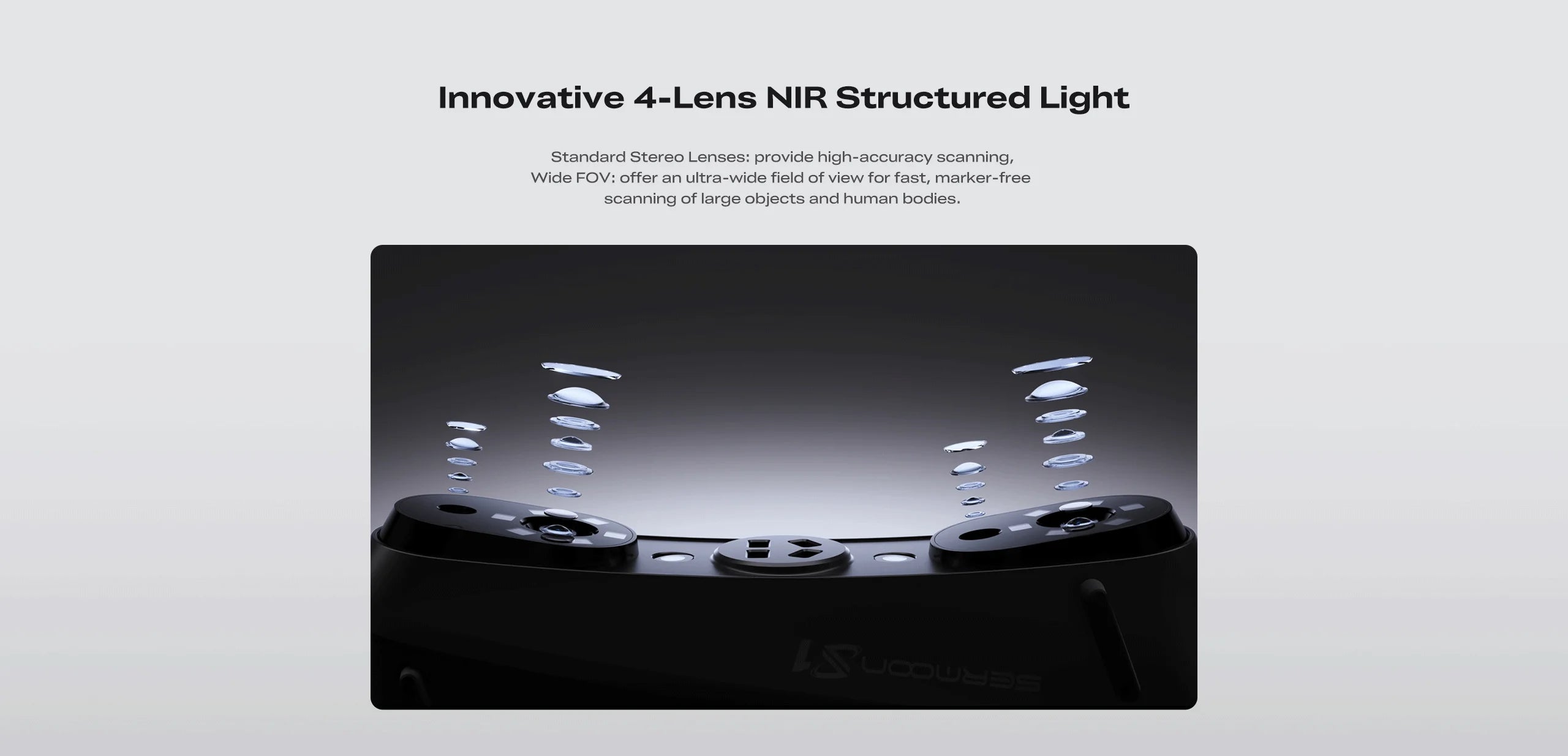

>>NIR(infrared binocular structured light) Mode:
Accuracy:Up to 0.075mm
Volumetric Accuracy: 0.075mm+0.1mm/m
Scanning rate: 4600,000 measurements/s
Single Capture Range:630mm×550mm@1000mm
Working distance: 170mm-500mm 200mm-1200mm
Outdoor Scanning: Below 30,000

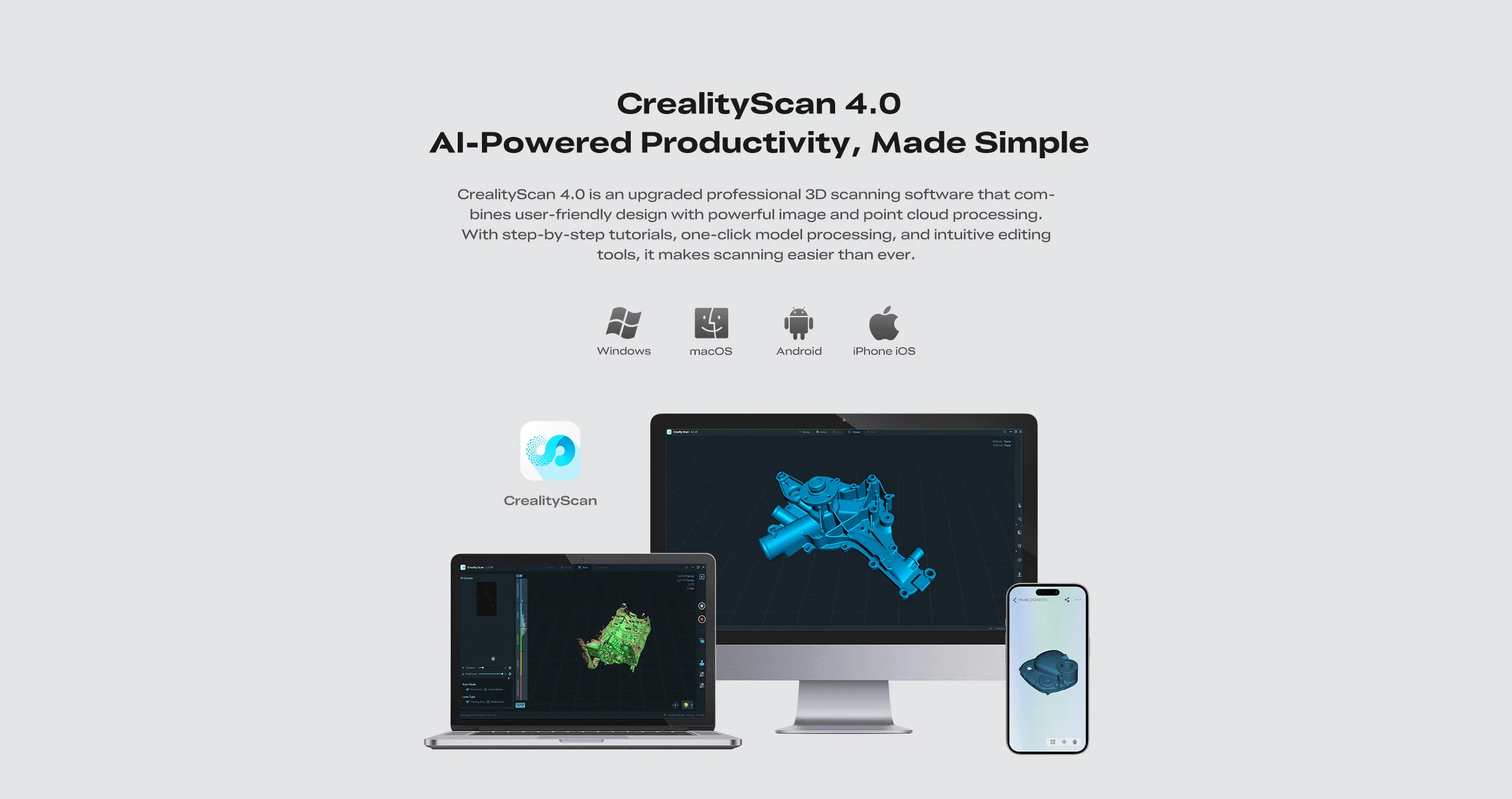

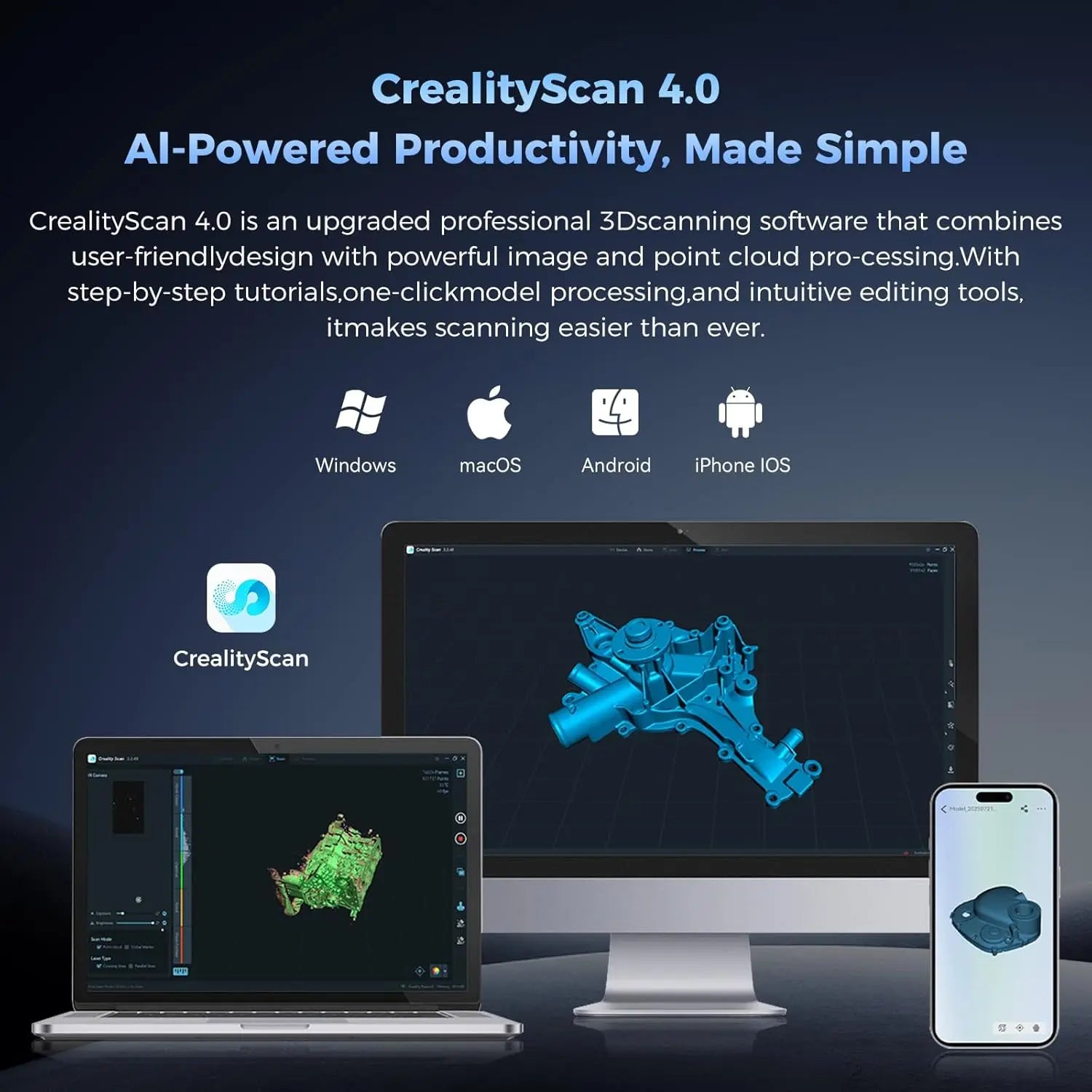

Computer configuration requirements:
Windows: It is recommended to use a computer with a higher configuration: i7-Gen10 CPU, Nvidia GPU (8GB VRAM), 32GB RAM, Windows 10/11 (64-bit)
Minimum configuration: i7-Gen7 CPU, Nvidia GPU (6GB VRAM), 16GB RAM, Windows 10/11 (64-bit),macOS: M1/M2/M3/M4 series, 16GB RAM
