SPECIFICATIONS



Battery Capacity(mAh): -

Battery Included: No

Certification: CE

Dimensions: 105x30x106mm

Frequency Range: 136-174&400-470MHz

Is_Display: Yes

Material: plastic and metal

Maximum Range: 10km-50km

Output Power(w): 10w-25w

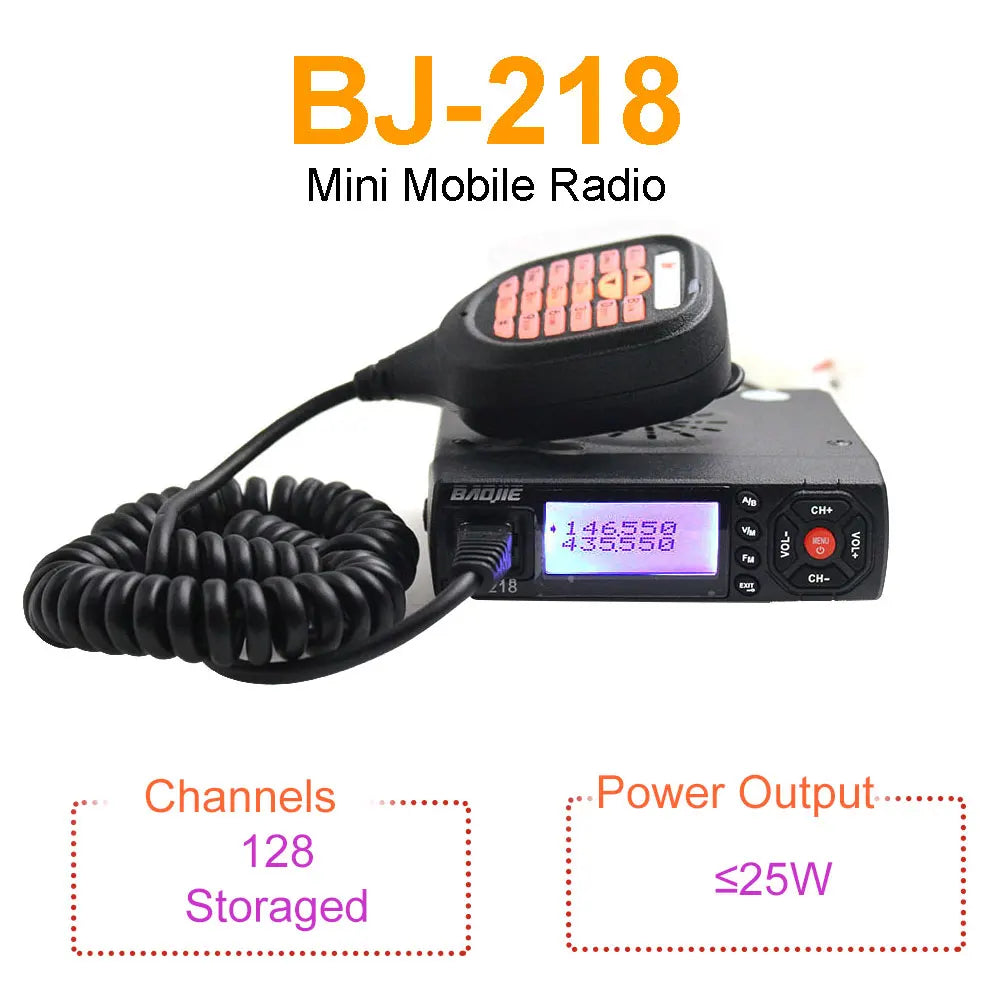

Storage Channel: 128

Use: Motor vehicle

Walkie Talkie Type: Car

Waterproof / Water-Resistant: IP55



Introduction:

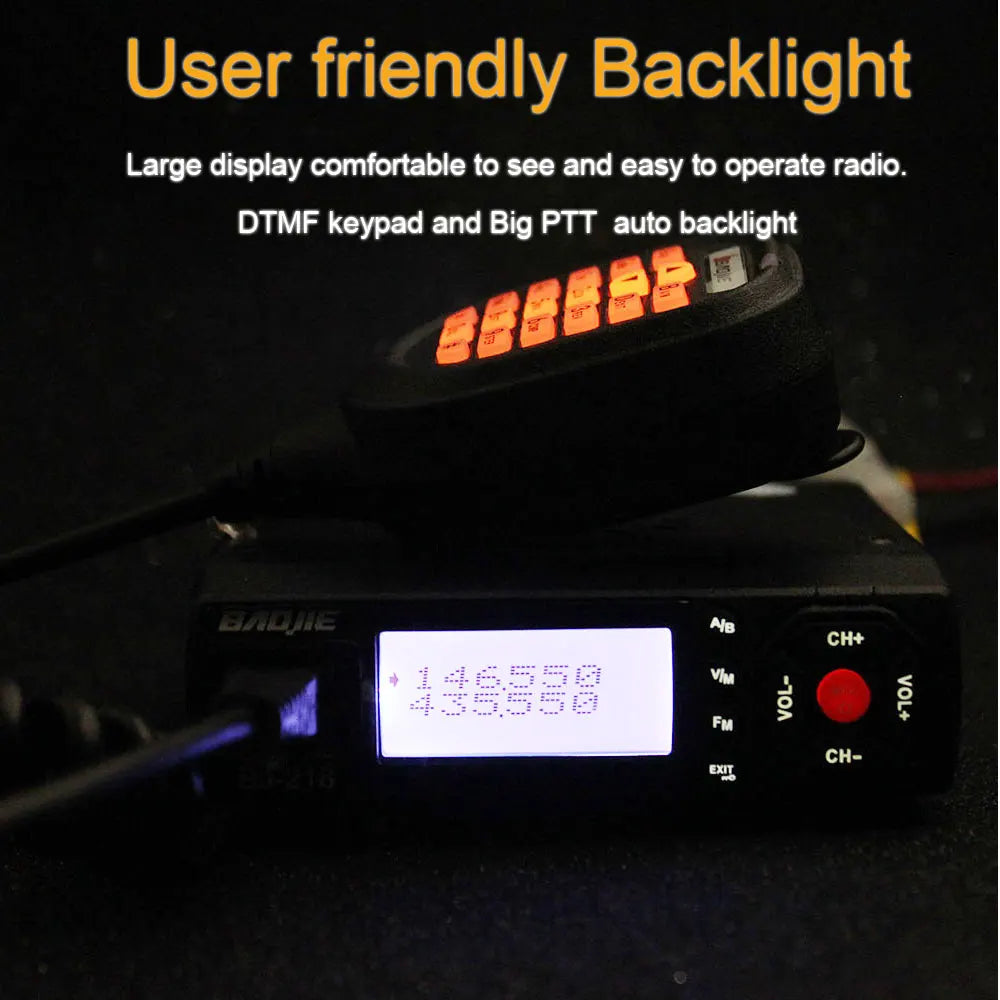

• Large LED display ensures excellent visibility-Night or Day.

• Body is very lightweight, so makes you easy to carry.

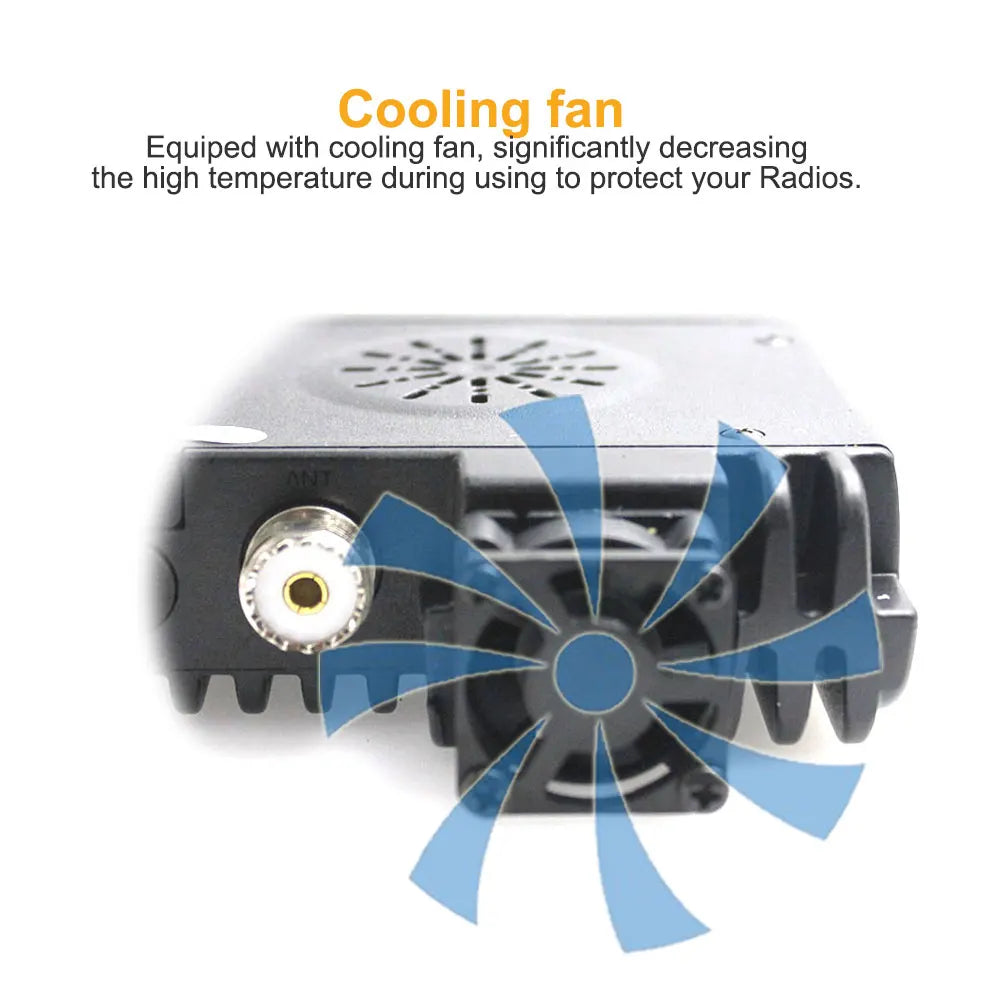

• With a MINI fan and has good heat dissipation

• Many functions and lower price with high quality



Feature:

• Control Head Separation with Ease

• 25W Powerful and Reliable Output Power

• Built-in stereo decoder for FM Broadcast: Listen to FM Broadcast in Stereo with dual speakers on the rear of the control head

• High-speed Band Scope

• Wideband Receive, Continuous reception for short-wave, FM/AM broadcasts, aircraft, and public service channels ect.

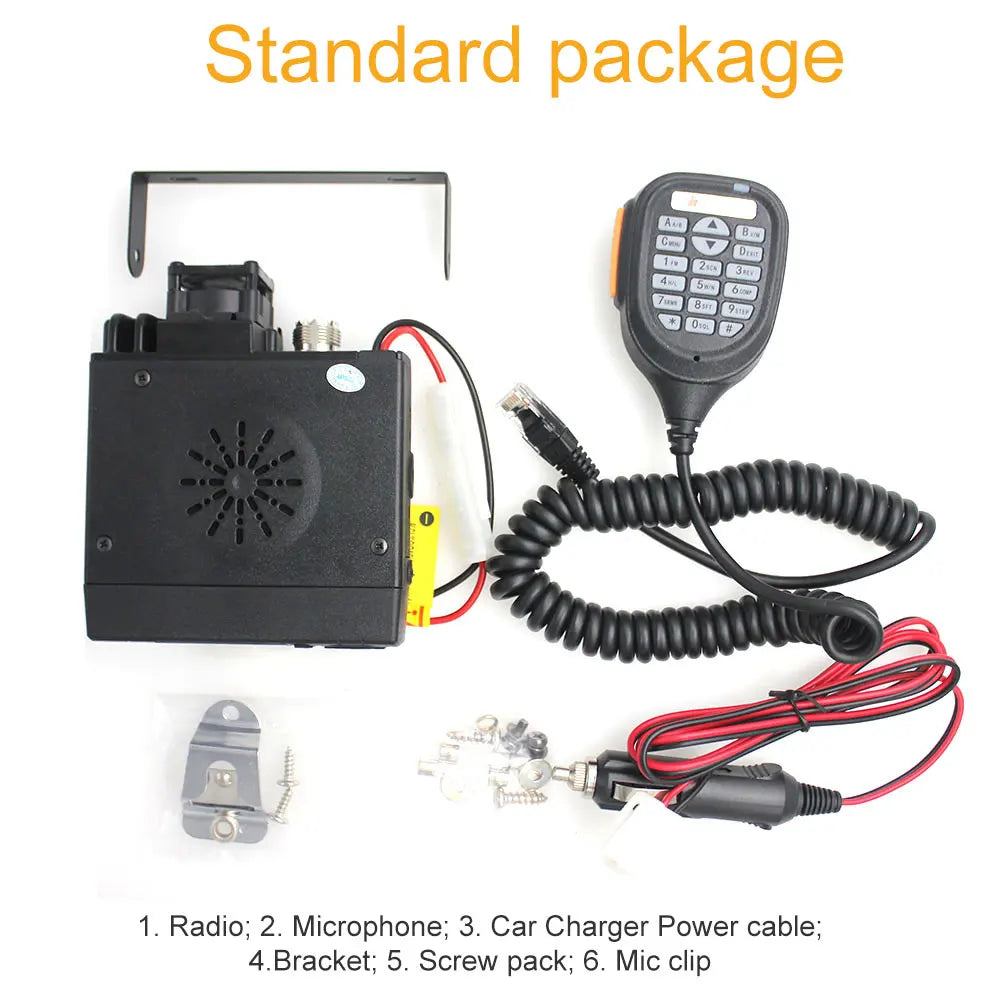

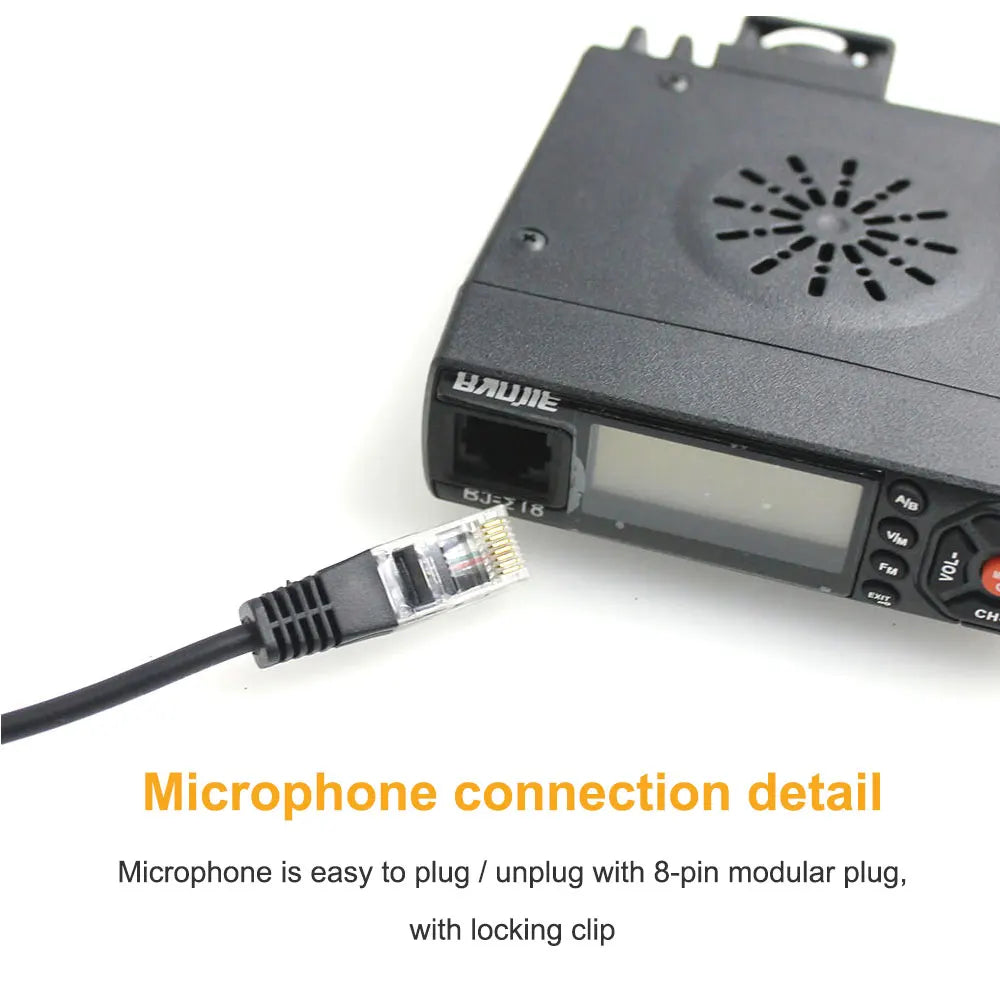

• With a waterproof hand microphone

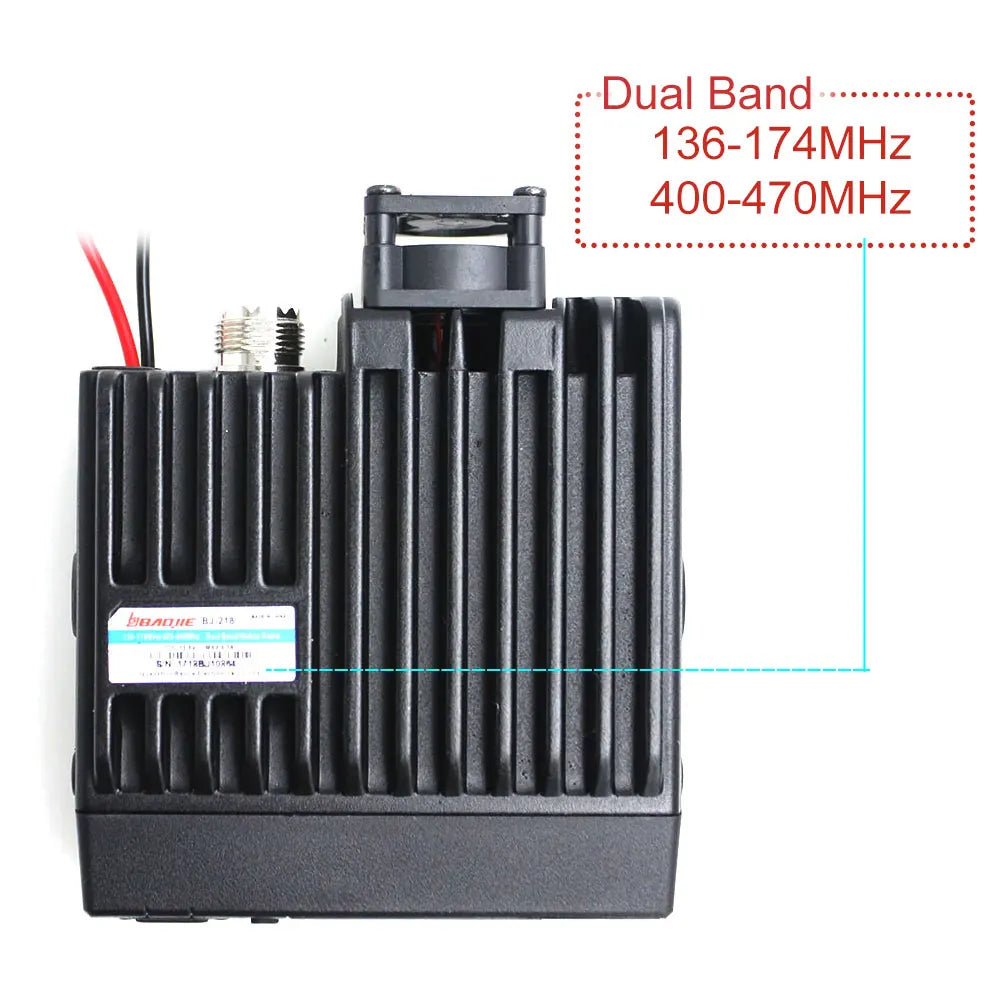

• With a MINI fan

• Selected calling team calling and group calling

• Remote control function

• Remote stunning(prohibit to be transmitted by controlled party)

• Remote shaking code(the controlled party is prohibited to receiving and transmitting)

• Remote monitoring(monitor the controlled party's environment voice)

• Remote reliving seining

• Alarm

• Output Power: 25 Watts

• Frequency: 136-174&400-470MHz



Specifications:

General
Frequency Range	RX: 76-108MHz(FM Radio) 136-174MHz 400-470MHz
	TX: 136-174MHz(Ham Band) 400-470MHz(Ham Band)
Frequency Step	2.5/5/6.25/10/12.5/15/20/25/50/100/200KHz
Frequency Stability	±2.5ppm
Repeater Shift	±600KHz (144MHz) ±1.6/5.0/7.6MHz (430MHz)
Antenna Impedance	50ohm
Supply Voltage	Nominal:13.8V DC (±15%), Negative Ground
Output power	High power:<=10W;middle power:<=6W;low power:<=3W
Operating Temperature	-20°C to +60°C(-4°F to+140°F)
Case Size	105x30x106mm(Width x Height x Depth and not included Projection)
Weight(Approx)	0.6kg
Transmitter
Maximum Deviation	±5KHz
Spurious Emission	<=-60dB
Microphone Impedance	2Kohm
Receiver
Sensitivity	2µV TYP for 12dB SINAD(76-108MHz,AM) 0.2µV TYP for 12dB SINAD(136-174MHz, AM)
Sensitivity	<=0.2uv(12dB SINAD)
Working current	Receive	0.3A(SQL)
	Transmit	5A(Max)
