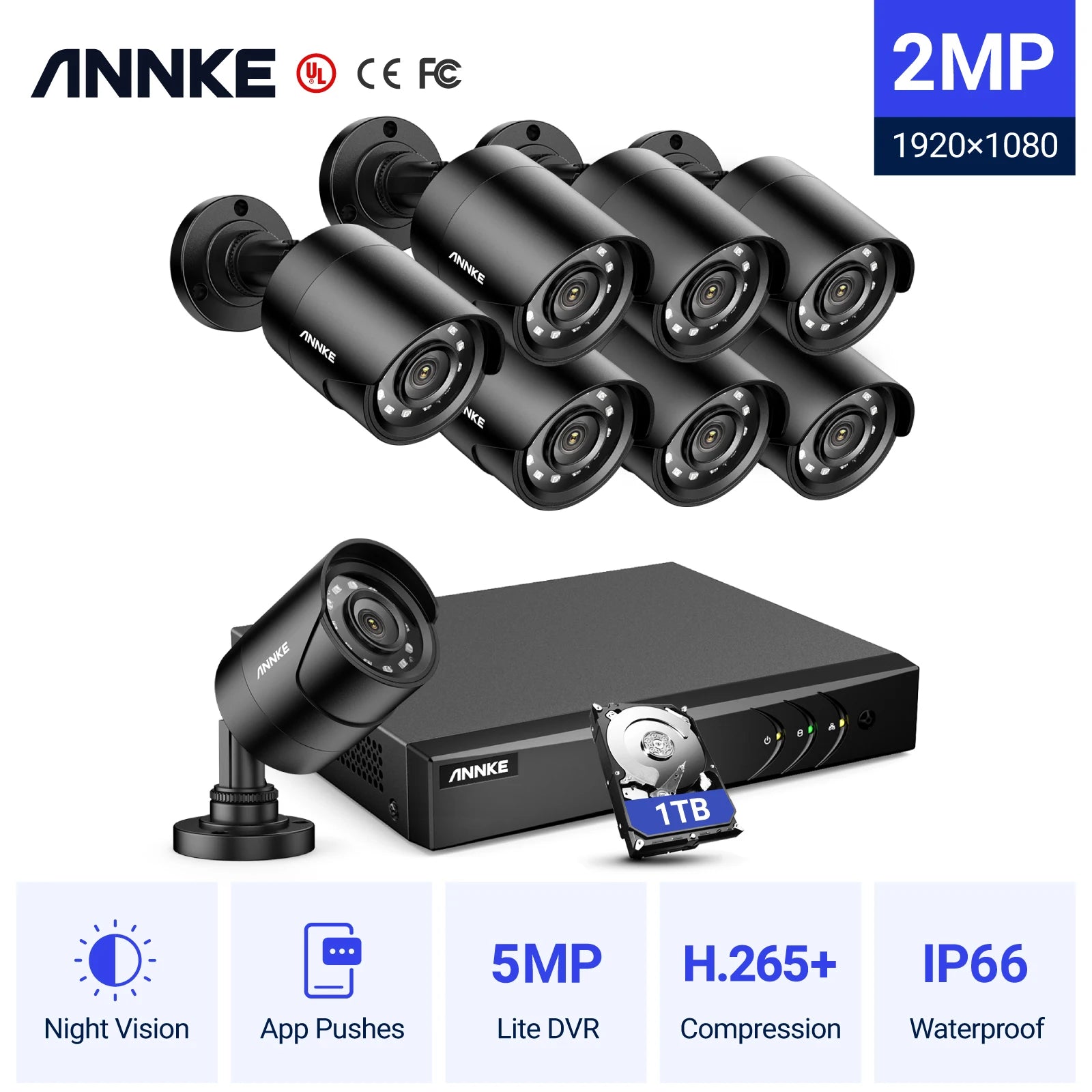

8CH CCTV Camera Video Surveillance Kit 5MP DVR Smart IR Security Camera Waterproof Night Vision Motion Detection System
SPECIFICATIONS
Angle of View: 82.2°
Audio: Built-in mic
Cable Length: 18m
Certification: CE,FCC
Color: Black
DNR: Support
Feature 1: CCTV Camera System
Feature 10: 5MP SECURITY CAMERA SYSTEM
Feature 11: 5MP surveillance system
Feature 12: ANNKE 5MP
Feature 2: Security Camera System
Feature 3: CCTV Video Surveillance
Feature 4: Video Surveillance Kit
Feature 5: camera surveillance
Feature 6: cctv surveillance system
Feature 7: VIDEO SURVEILLANCE SYSTEM
Feature 8: security video system
Feature 9: CCTV Camera System
Housing: Plastic
IPC Playback Resolution: Up to 6MP
IR Cut Filter: Yes
Image sensor: 2MP CMOS Image Sensor
Indoor/Outdoor: Indoor/Outdoor
Lens: 3.6mm
Max Playback Channel: 8-ch
Model Number: DW81KD-51BH
Night Vision Distance: Up to 100ft/30m
Number of Infra-Red LEDs: 12
PCS of Camera: 4PCS
Resolution: 5 MP
Video Compression: H.264+/H.264/H.265/H.265 Pro+
Weatherproof Rating: IP66
Wide Dynamic Range: Digital WDR
DVR:
· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H.265 Pro+ Video Compression

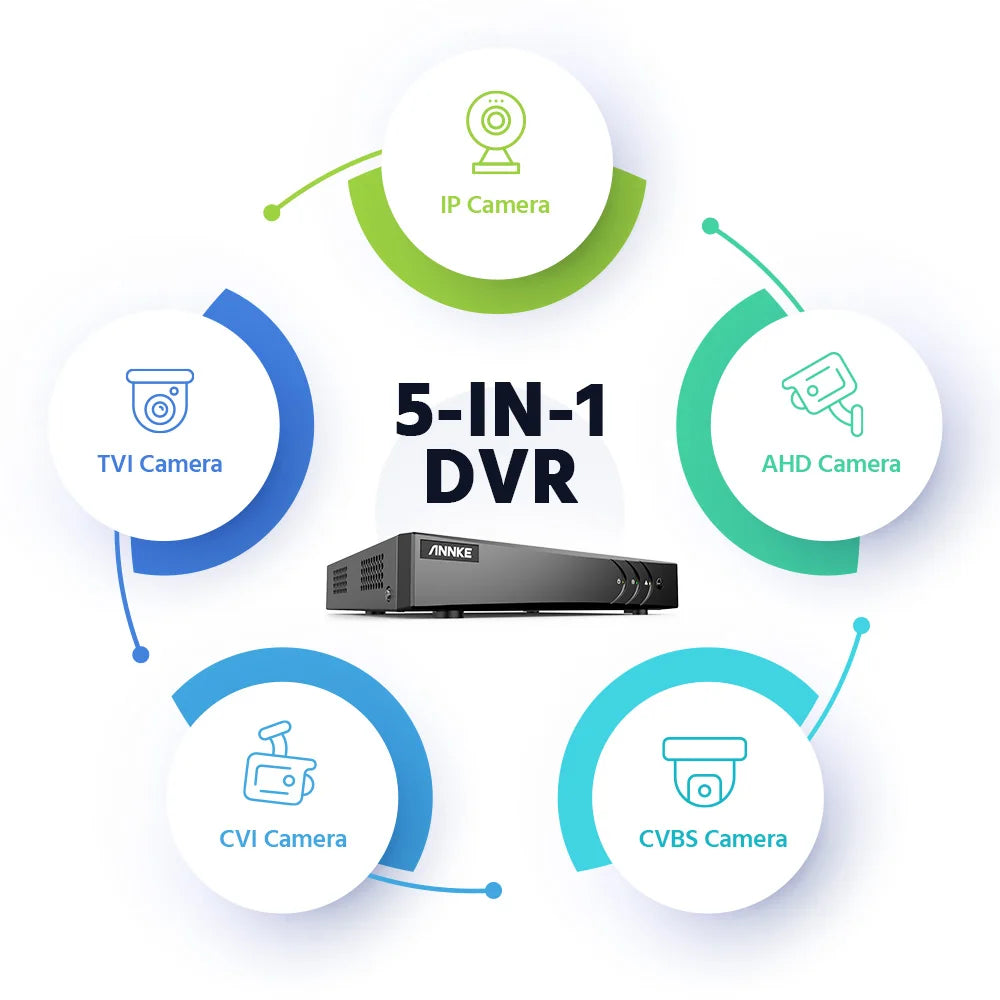

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhone、iPad、Android mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
· Quick search by object or event type
· Audio via coaxial cable

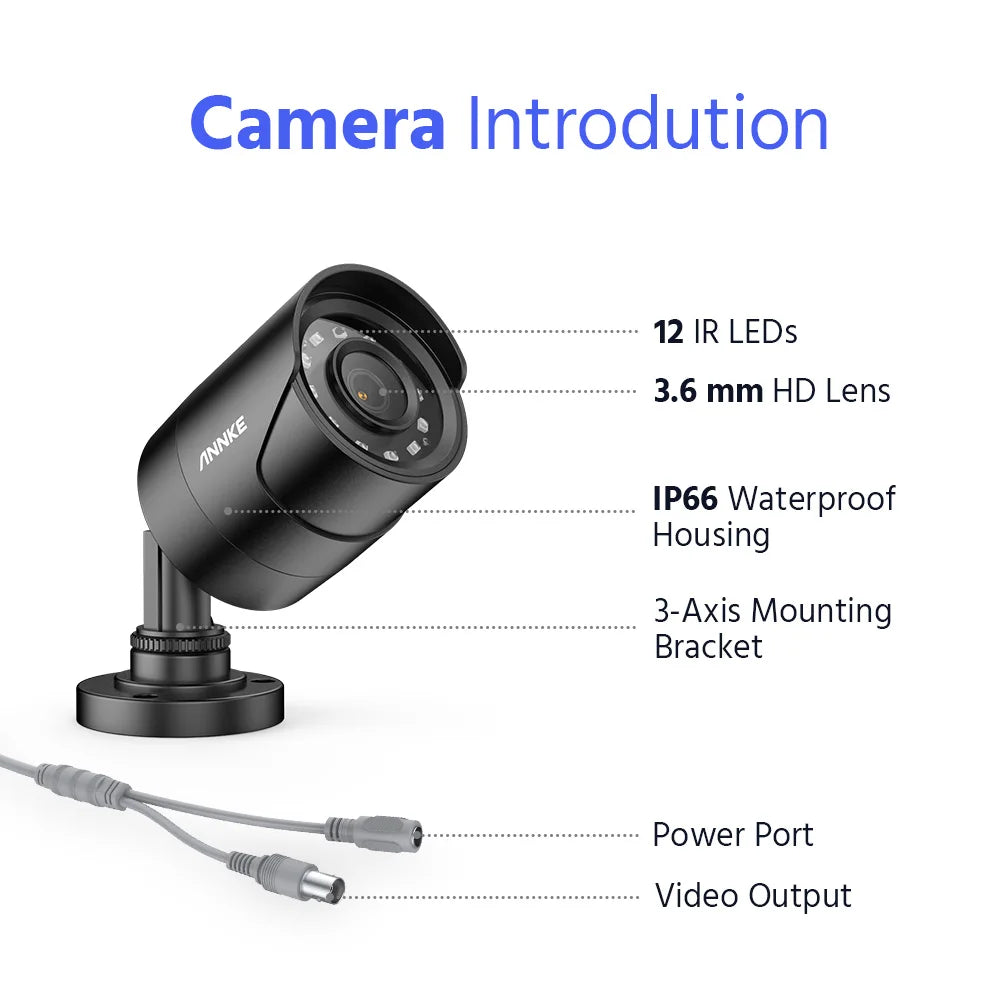

Camera:
★ 1080P HD TVI Bullet Security Camera
★ Up to 30m night vision with Smart IR
★ 3.6mm lens brings everything back to life

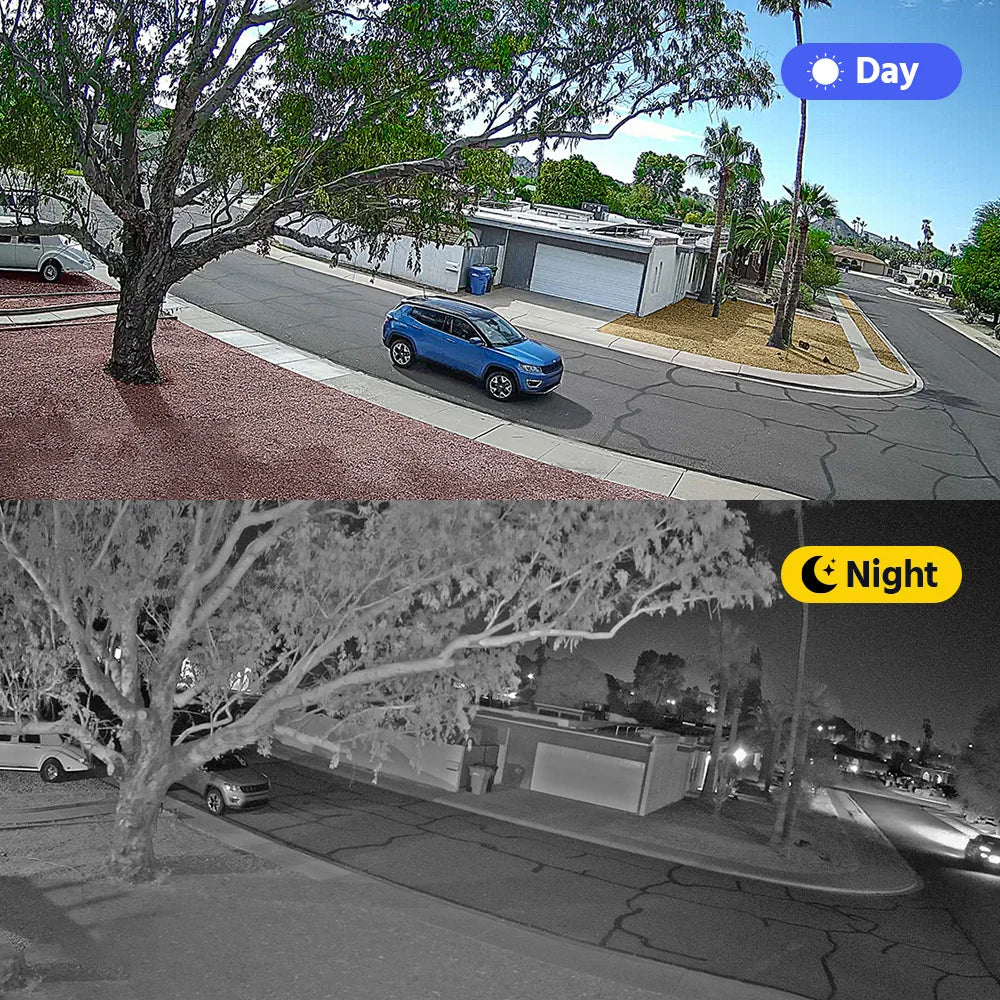

★ Clear day and night vision with auto IR-cut
★ IP66 Dust and Waterproof Rating

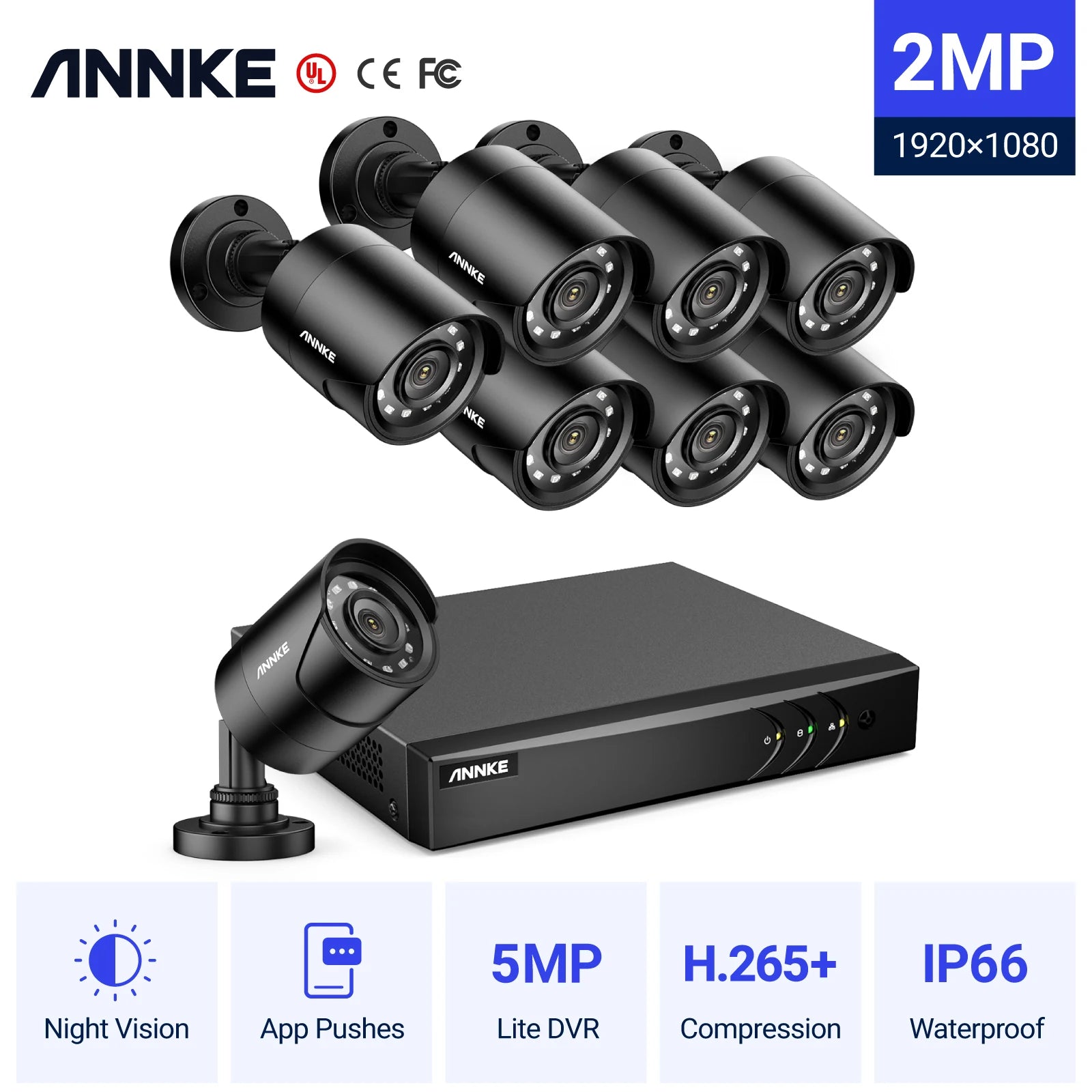

【1080p Wired Security Cameras & 8 Channel DVR】
8 pcs security cameras deliver the best 1080p live view at 30 fps & up to 100 ft night vision. The advanced sensor & smart IR help capture clear images without noise. The 5-in-1 5MP Lite DVR works with TVI, AHD, CVI, CVBS & IP cameras.

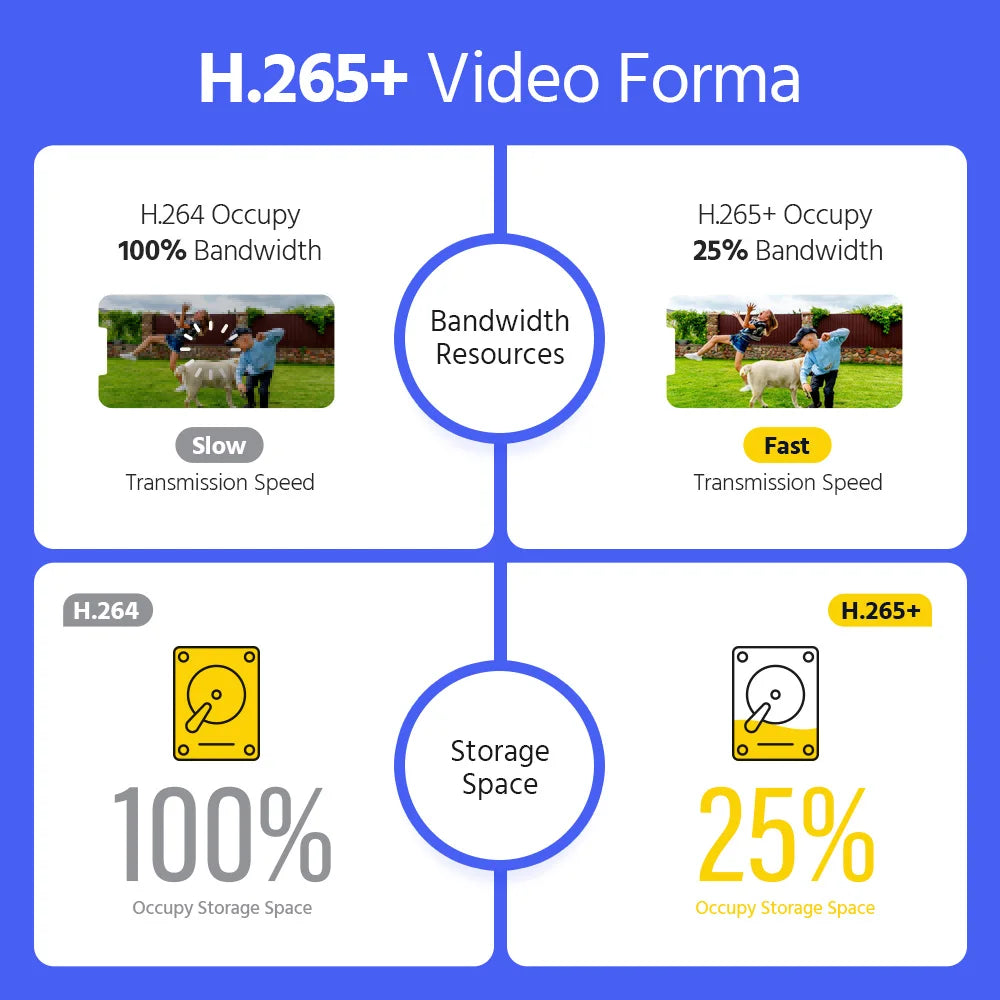

【Advanced H.265+ Video Format】
H.265+ coding reduces the file sizes and saves the bandwidth greatly. You'll enjoy faster & smoother live stream than H.264 systems, without buffering or latency.
【All-Around Certifications & Secure App】
Every device, including the DVR & cameras, all passed the severe testing conducted by authorized organizations, like UL, CE, FCC, HDMI, etc. ANNKE App conforms to GDPR, ensuring the video stream is secure in data transferring & downloading.

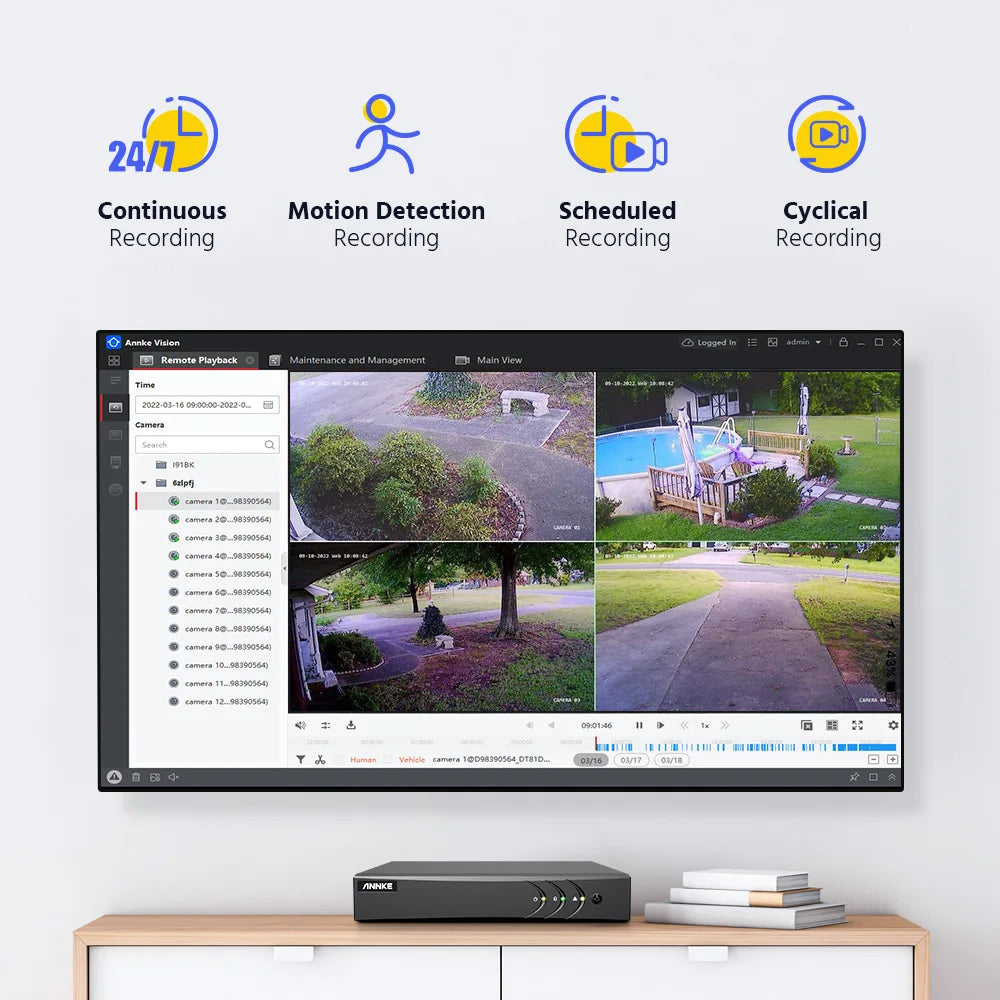

【Remote Access & Smart Motion Alerts】
Access & control the system via 3G/4G/5G or WiFi with your smartphones, tablets, computers remotely. When there are motion events, you'll always receive real-time app pushes and email alerts with snapshots.

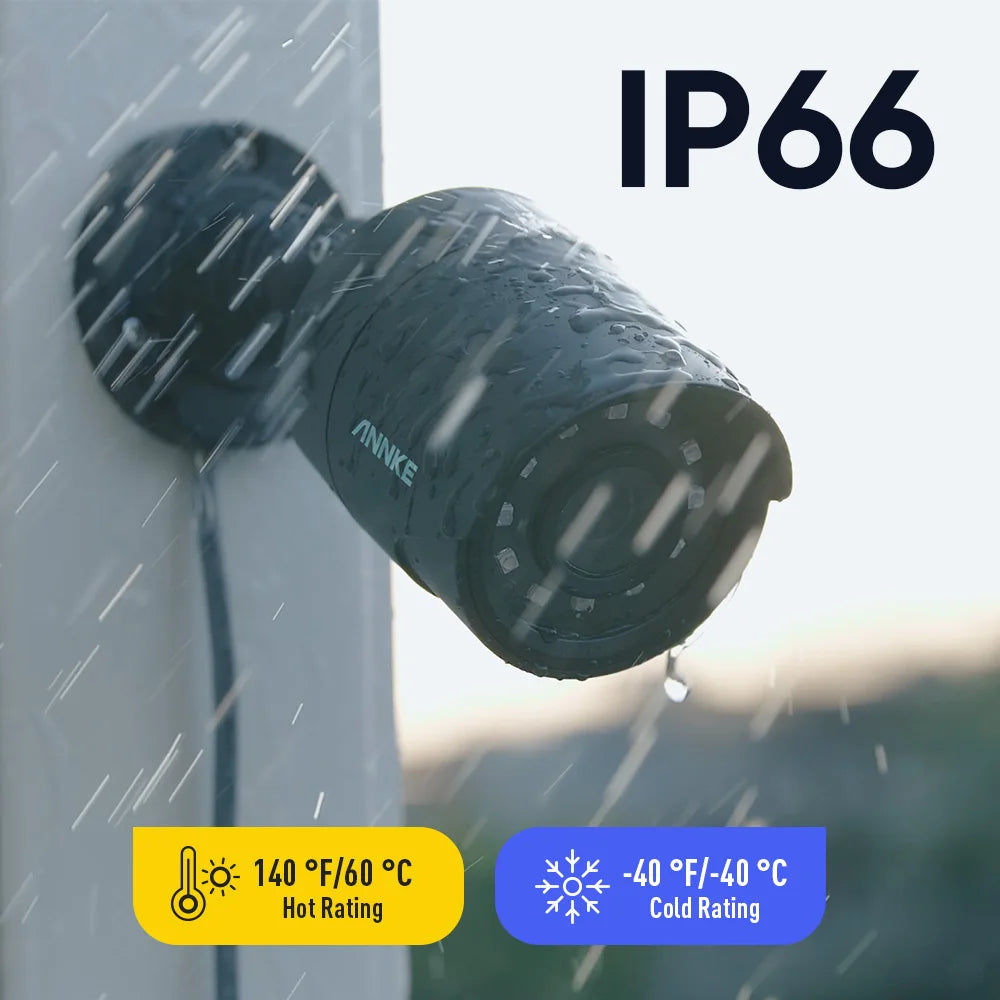

【IP66 Waterproof & Best ABS Housing】
The camera, with IP66 waterproof rating, braves the harshest weather & captures clear images in extremely hot/cold climates. The housing, made from the best ABS materials, provides fast heat dissipation & long lifespan without fading.
\

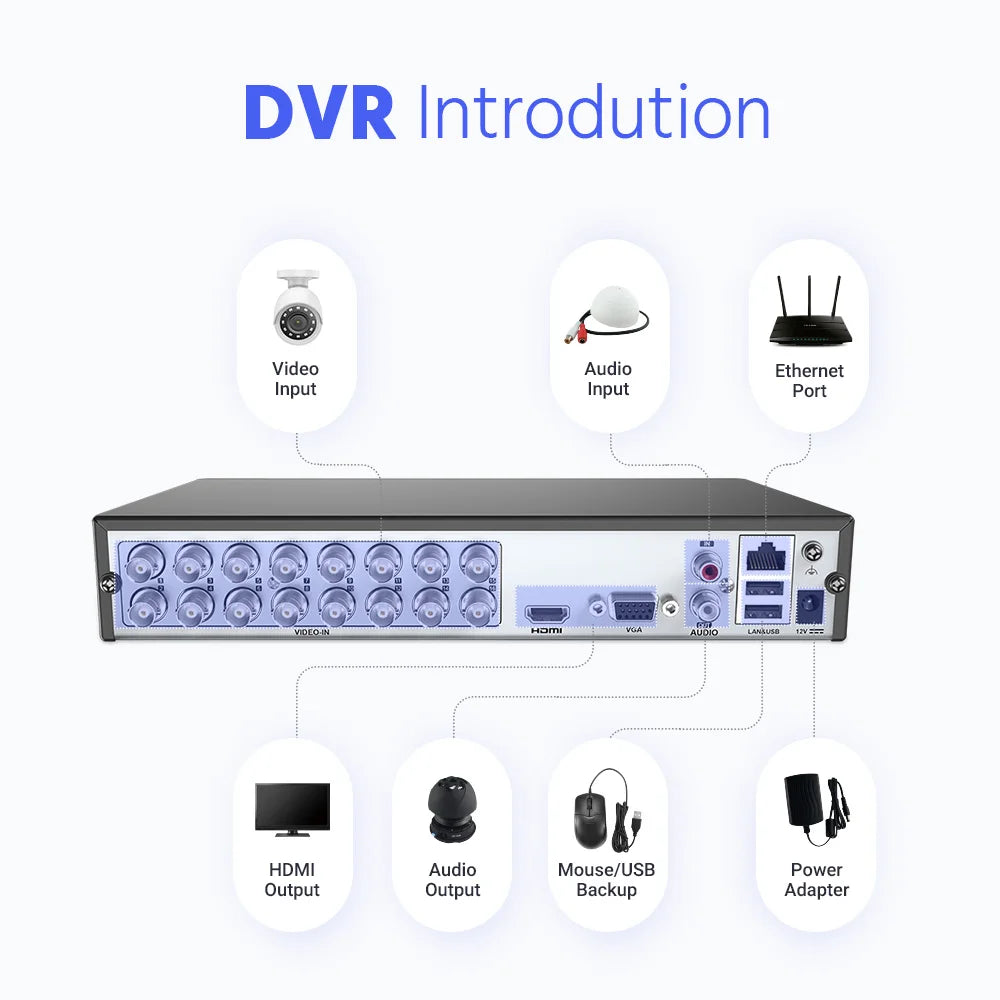

DVR:
|
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265 Pro+ |
|
Video Input |
8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on) |
|
|
Video Output |
HDMI and VGA Up to 1080P |
|
|
Audio Input |
1-ch RCA,8-ch via coaxial cable |
|
|
Audio Output |
1-ch RCA |
|
|
Supported Camera Types |
Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; |
|
|
Analog HD Playback Resolution |
3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps |
|
|
IPC Playback Resolution |
Up to 6MP |
|
|
Max Playback Channel |
8-ch |
|
|
Network Protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS |
|
|
Total Bandwidth |
96Mbps |
|
|
Remote Connection |
64 |
|
|
Motion Detection 2.0 |
All analog channels support human and vehicle detection to reduce false alarm |
|
|
Hard Drive |
HDD |
1 SATA interface |
|
HDD Capacity |
Up to 10TB capacity |
|
|
External Interface |
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
|
USB |
USB2.0x2 |
|
|
General |
Operating Power |
DC12V,≤ 12W (without HDD) |
|
Working Temperature |
-14 °F – 131 °F /-10 °C – 55 °C |
|
|
Dimensions(W x H x D) |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
|
|
Weight (without hard disk) |
≤ 1 kg (2.2 lb)(without HDD) |
Camera:
|
Camera |
Image sensor |
2MP CMOS Image Sensor |
|
Video Resolution |
1920 (H) × 1080 (V) |
|
|
Signal System |
PAL/NTSC |
|
|
Frame Rate |
PAL: 1080p@25fps NTSC: 1080p@30fps |
|
|
Lens |
3.6mm |
|
|
Min.Illumination |
Color:0.02 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
|
Angle of View |
82.2° |
|
|
Number of Infra-Red LEDs |
12 |
|
|
Night Vision Distance |
Up to 100ft/30m |
|
|
DNR |
Support |
|
|
Wide Dynamic Range |
Digital WDR |
|
|
IR Cut Filter |
Yes |
|
|
Video Output |
HD BNCx1 |
|
|
General |
Housing |
Plastic |
|
Color |
Black |
|
|
Operating Power |
DC12V |
|
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
|
Indoor/Outdoor |
Indoor/Outdoor |
|
|
Weatherproof Rating |
IP66 |
|
|
Dimension (L x W x H) |
2.76" × 6.08"/ 70× 154.5 mm |
|
|
Weight |
0.88lbs / 400g |
