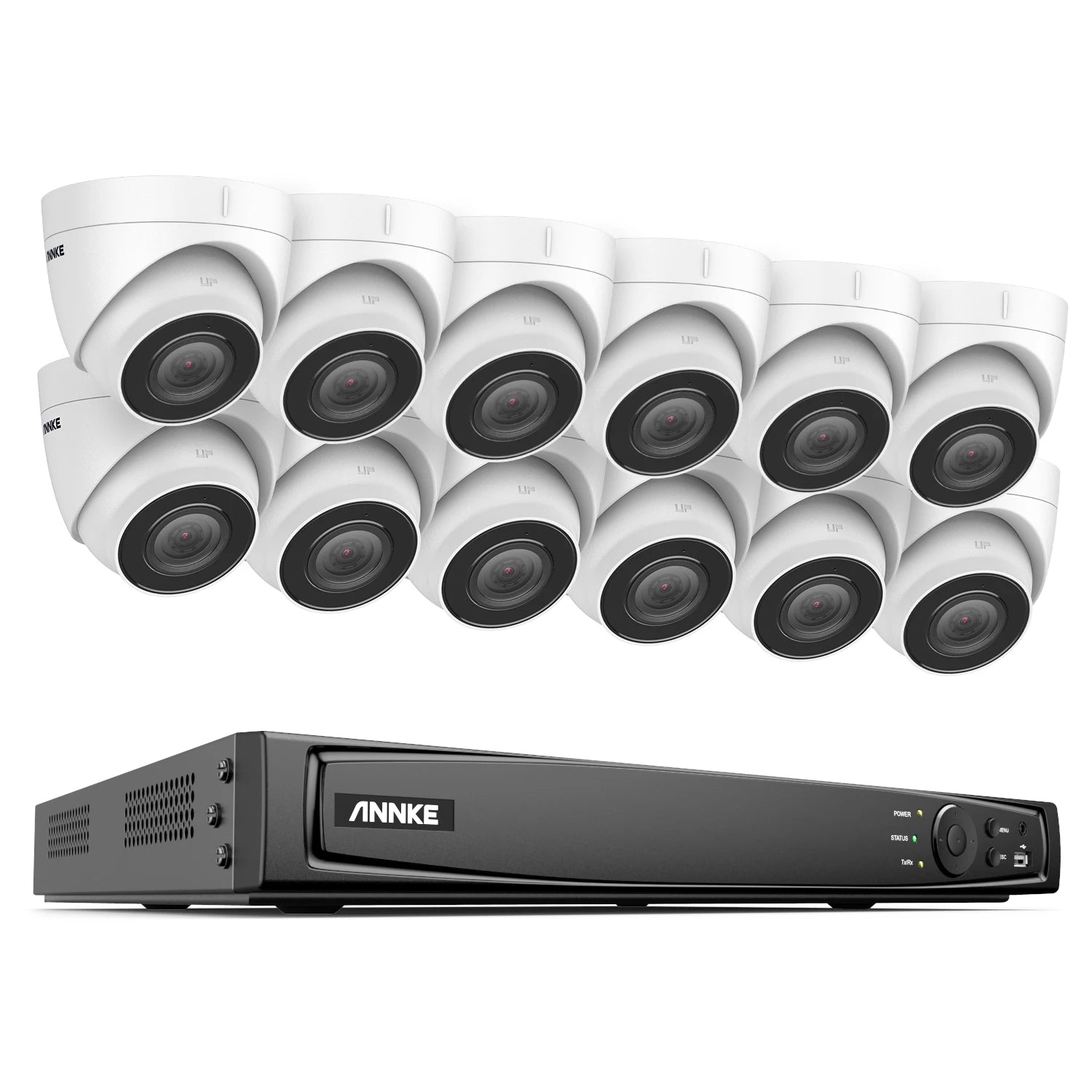

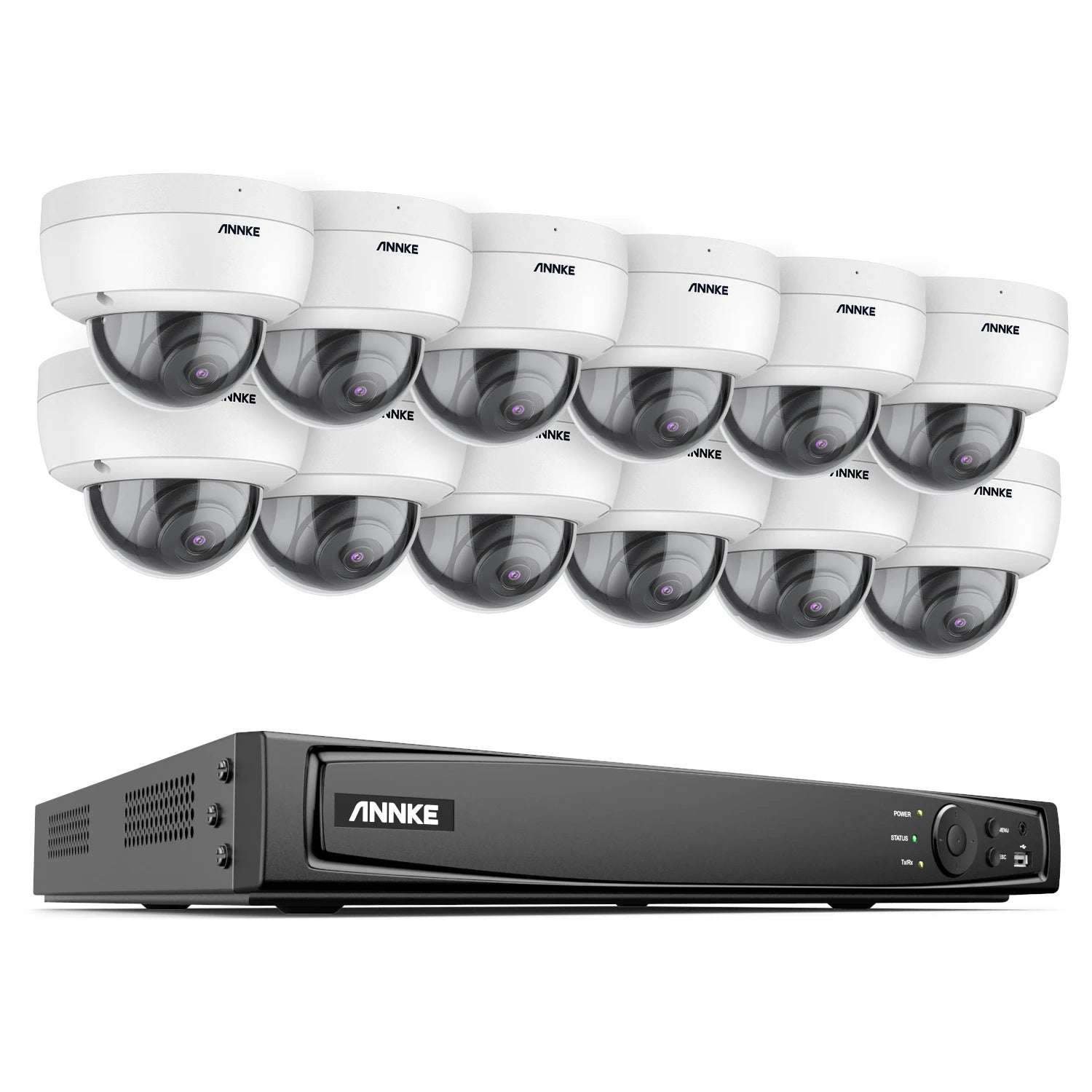

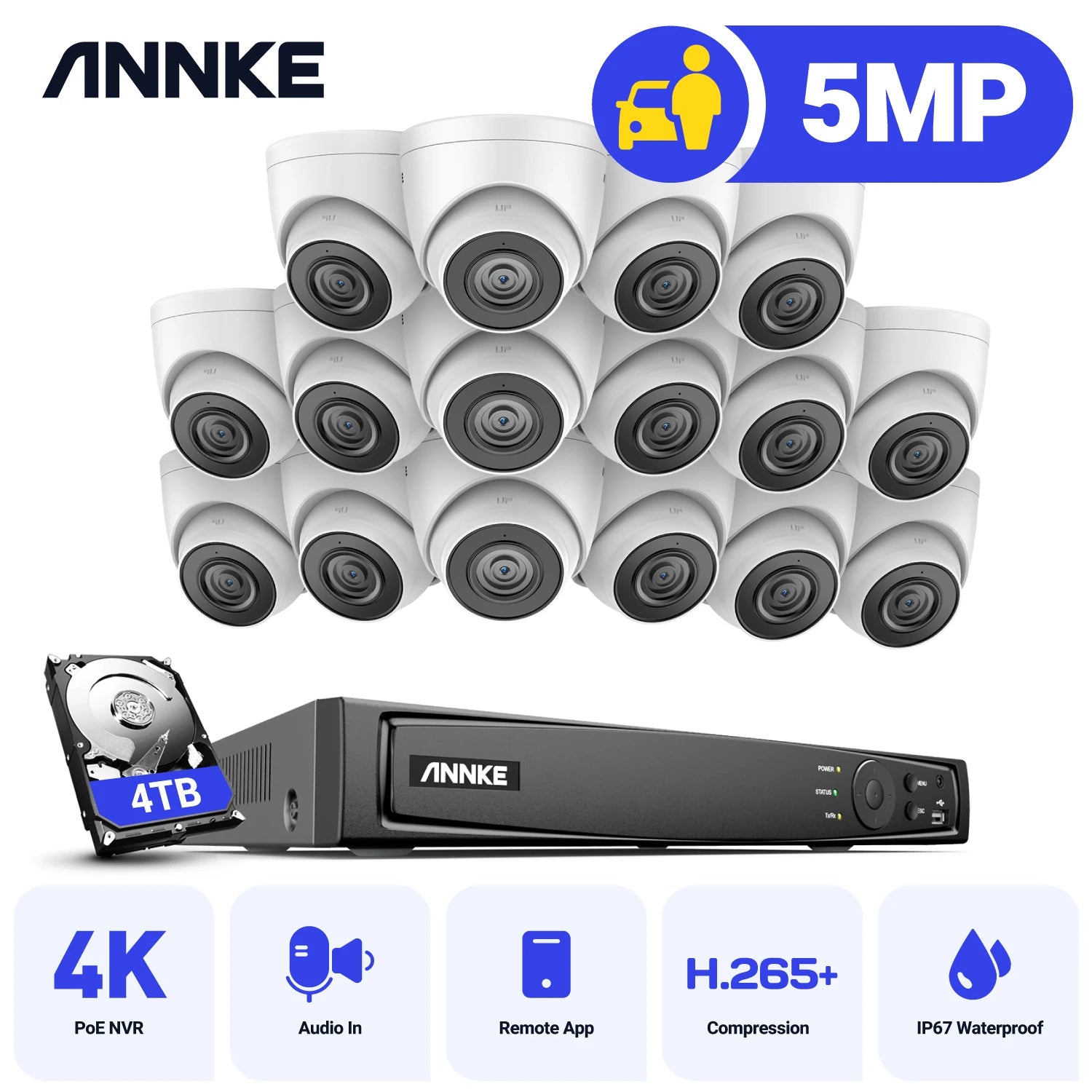

16CH 5MP POE NVR Kit Security Camera System Two Way Audio H.265+ 5MP IP Camera 4K NVR Outdoor CCTV Video Surveillance Set
SPECIFICATIONS
Cable Length: 18m
Certification: CE
CS of Camera: 8PCS
Resolution: 5 MP
Smart home platform: None
TV System: NTSC,PAL
Video Input: 16 Channel
DVR Key Features
· Live view, recording&playback up to 8 MP resolution

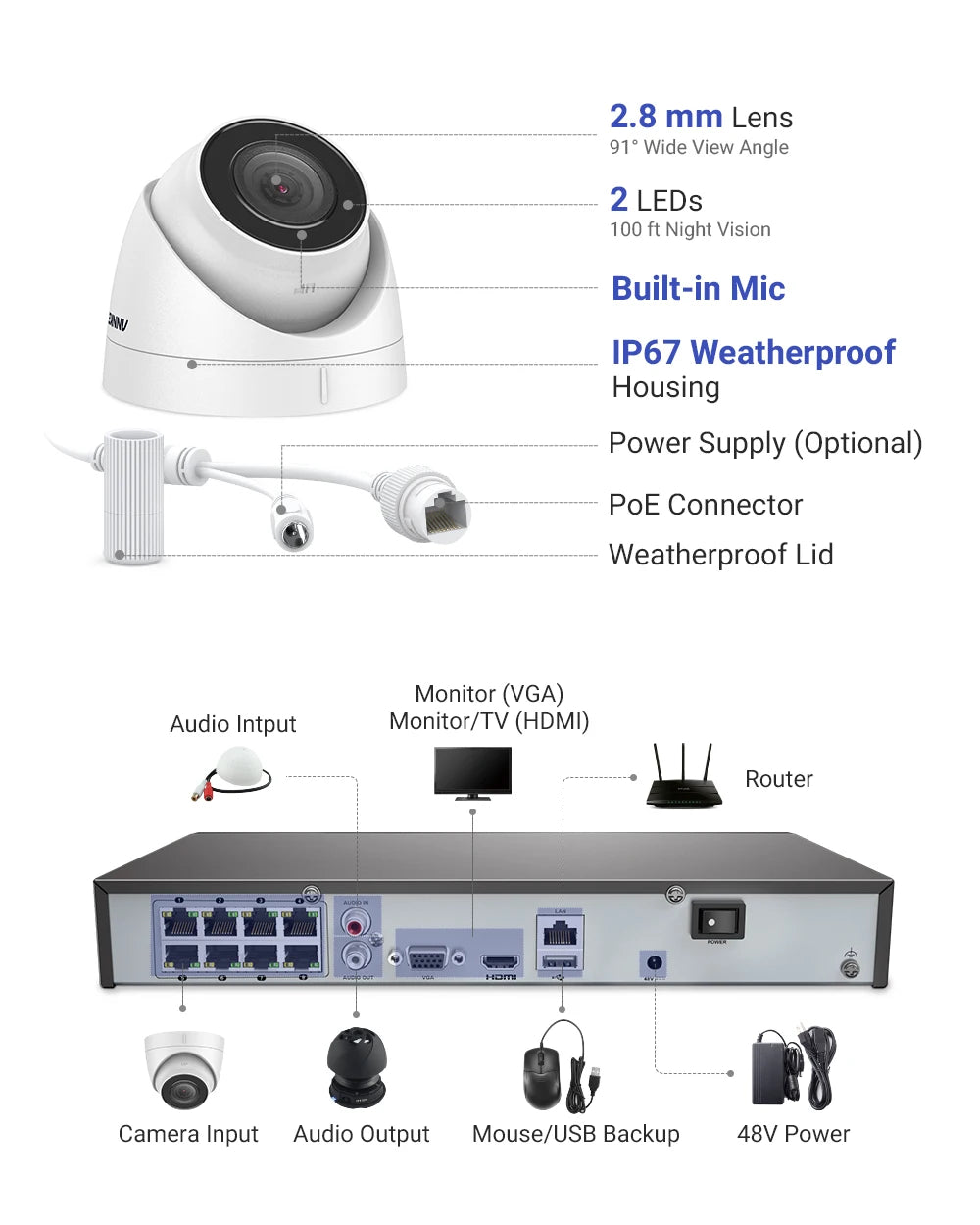

· Up to 16 channel IP cameras can be connected with built-in PoE inputs
· Advanced H.265+ Video Compression
· Supports iPhone、iPad、Android mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (3840 × 2160) resolution
· 2 SATA interfaces connectable for recording and backup
· Annke Vision for easy remote view
Camera Key Features
★ 3K IR Network Camera with 16:9 image scale

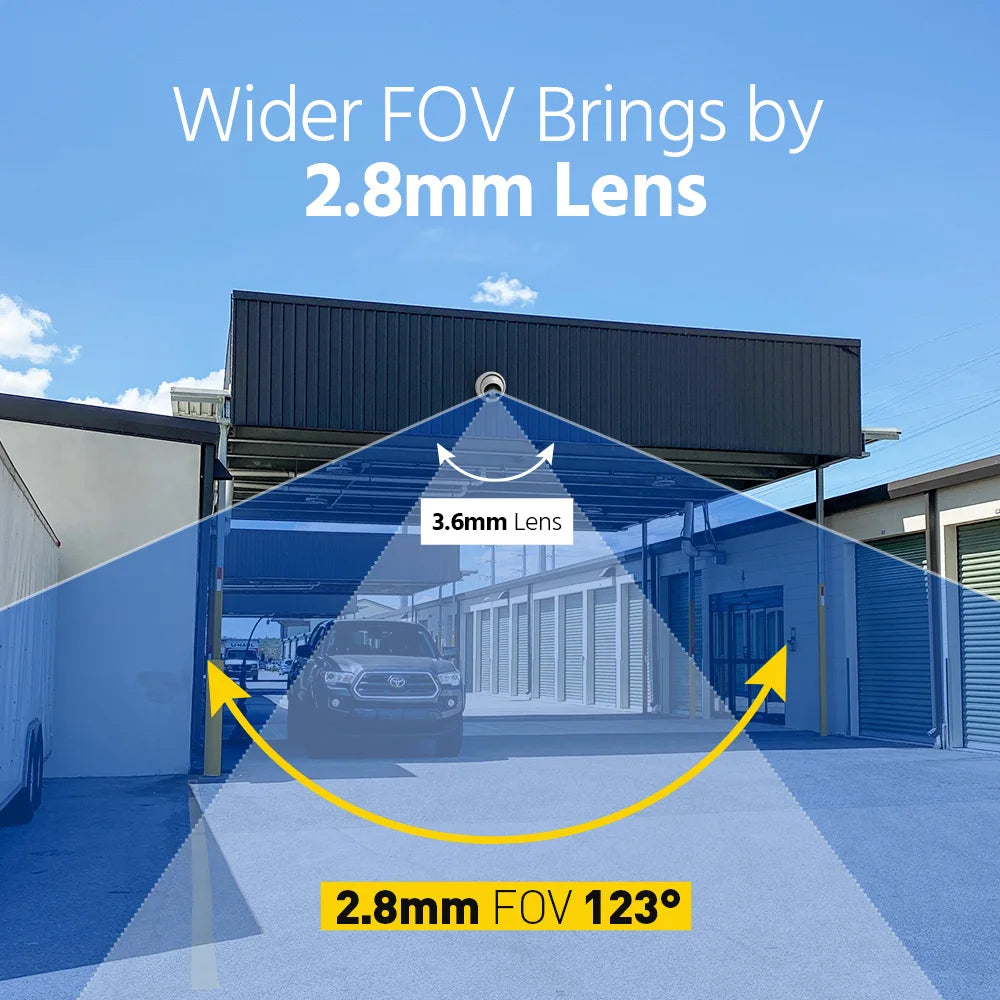

★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Up to 100ft night vision with EXIR 2.0
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in Microphone, record with audio
★ Built-in microSD/SDHC/SDXC Slot, up to 256 GB

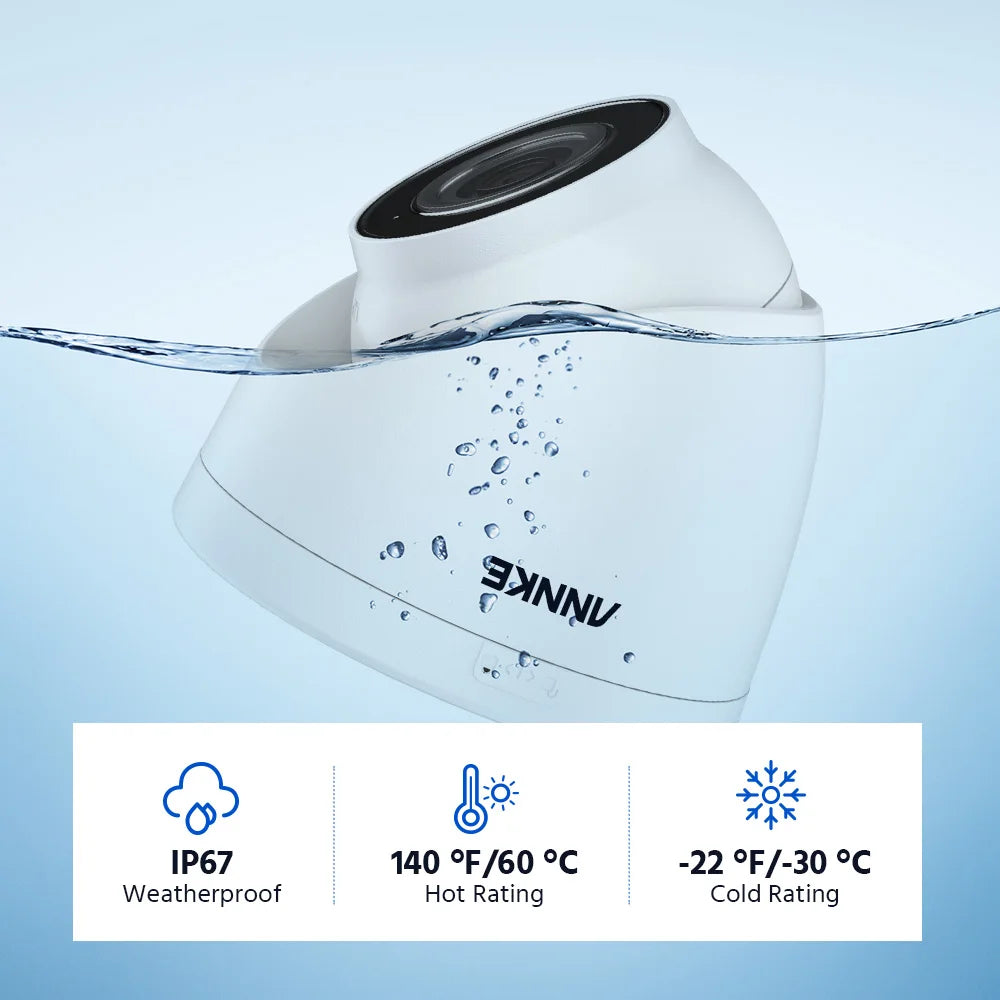

★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V
|
NVR |
||
|
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+/MPEG4 |
|
IP Video Input |
16CH PoE |
|
|
Video Output |
HDMI up to 4K, VGA up to 1080p |
|
|
Audio Input/Output |
1/1 RCA |
|
|
Incoming Bandwidth |
160 M |
|
|
Max. Recording Resolution |
Up to 8MP (3840 X 2160) |
|
|
Max. Playback Resolution |
Up to 8MP (3840 X 2160) |
|
|
Max. Playback Channel |
16CH |
|
|
Max. Playback Capacity |
1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
|
|
ONVIF Protocols |
Support |
|
|
Hard Drive |
HDD |
2 SATA Interface |
|
HDD Capacity |
Up to 8 TB Capacity for each disk |
|
|
|
Network Interface |
RJ45 X1 (10/100/1000 M) |
|
PoE |
16 Ports (IEEE802.3af/at) |
|
|
Alarm Input/Output |
- |
|
|
RS485 |
- |
|
|
USB |
2X USB 2.0 |
|
|
General |
Operating Power |
AC 100-240 V |
|
Power Consumption |
≤15 W (Without HDD and PoE) |
|
|
PoE: Max. 25.5W for Single Port |
||
|
Working Temperature |
14 °F — 131 °F/-10 °C — 55 °C |
|
|
Dimensions (W X H X D) |
15.2” X 12.4” X 2.0”/385 X 315 X 52 mm |
|
|
Weight (Without Hard Disk) |
6.6 lbs./3 kg |
|
|
IP Camera |
||
|
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
|
Main Stream Max. Frame Rate |
50Hz: 20 fps (2592 × 1944, 2560 × 1440), 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
|
|
Substream Max. Frame Rate |
50 Hz: 25 fps (640 X 480, 640 X 360, 320 X 240) |
|
|
Video Compression |
H.265+/H.265/H.264+/H.264 |
|
|
Video Bitrate |
32 Kbps - 8 Mbps |
|
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
|
Audio Input |
Built-in Microphone |
|
|
Lens |
2.8 mm |
|
|
Min. Illumination |
Color: 0.028 Lux @(F2.0, AGC On) |
|
|
Angle of View |
Horizontal FOV 98°, vertical FOV 53°, diagonal FOV 115° |
|
|
Number of Infrared LEDs |
2 pcs |
|
|
Night Vision Distance |
Up to 100 ft/30 m |
|
|
DNR |
3D DNR |
|
|
Wide Dynamic Range |
120 dB WDR |
|
|
ONVIF |
Support |
|
|
IR-Cut Filter |
Yes |
|
|
Ethernet |
RJ45 X1 (10 M/100 M) |
|
|
General |
Housing |
Metal & Plastic |
|
Color |
White |
|
|
Storage |
Built-in MicroSD/SDHC/SDXC Slot, up to 256 GB |
|
|
Hardware Reset |
Yes |
|
|
Operating Power |
DC 12 V; PoE (802.3af) |
|
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
|
Interface Protection |
IP67, TVS 2000 V Lightning Protection, Surge Protection and Voltage Transient Protection |
|
|
Dimension (L X W X H) |
Ø110 mm X 85.3 mm (Ø4.3" X 3.4") |
|
|
Weight |
320 g (0.7 lb.) |
|
